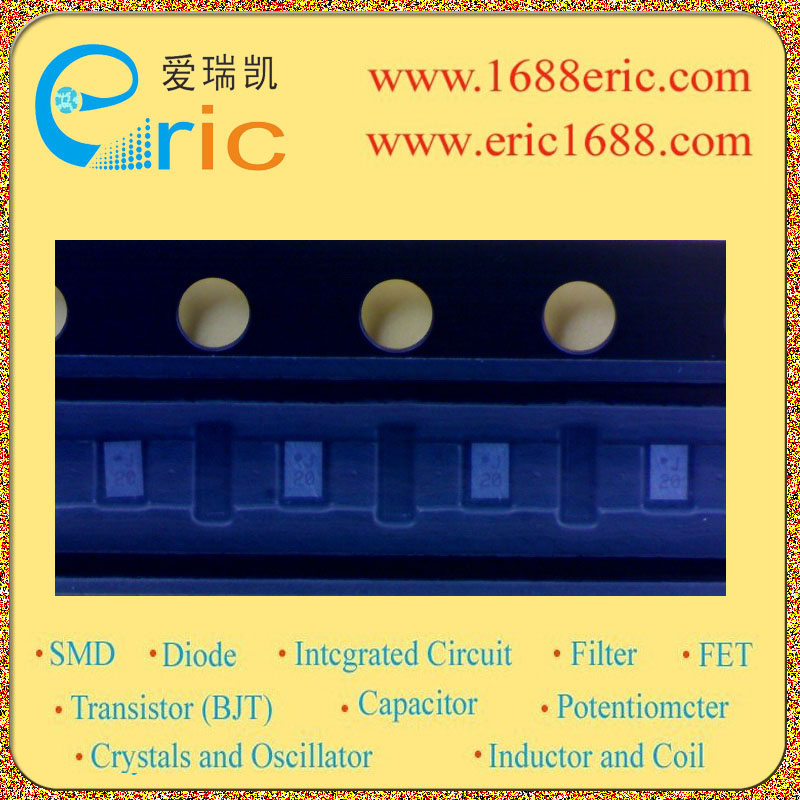

TC7SP302WBG j 的参数 |
| 逻辑类型
Logic Type |
或非门 NOR Gate |
| 电路数
Number of Circuits |
4 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
1.1V~2.7V |
| 静态电流Iq
Current - Quiescent (Max) |
2uA |
| 输出高，低电平电流
Current - Output High, Low |
|
| 低逻辑电平
Logic Level - Low |
|
| 高逻辑电平
Logic Level - High |
|
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
|
| Description & Applications |
Dual supply 2-Input NOR Gate with Level Translator ；? Level converter for interfacing 1.2-V to 1.8-V, 1.2-V to 2.5-V, 1.2-V to 3.3-V, 1.5-V to 2.5-V, 1.5-V to 3.3-V, 1.8-V to 2.5-V, 1.8-V to 3.3-V or 2.5 V to 3.3-V system. ? High-speed operation : tpd = 6.8 ns (max) (VCCA = 2.5 ± 0.2 V, VCCB = 3.3 ± 0.3 V) tpd = 7.8 ns (max) (VCCA = 1.8 ± 0.15 V, VCCB = 3.3 ± 0.3 V) tpd = 9.0 ns (max) (VCCA = 1.5 ± 0.1 V, VCCB = 3.3 ± 0.3 V) tpd = 31 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 3.3 ± 0.3 V) tpd = 9.5 ns (max) (VCCA = 1.8 ± 0.15 V, VCCB = 2.5 ± 0.2 V) tpd = 10.5 ns (max) (VCCA = 1.5 ± 0.1 V, VCCB = 2.5 ± 0.2 V) tpd = 32 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 2.5 ± 0.2 V) tpd = 37 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 1.8 ± 0.15 V) ? Output current : IOH/IOL = ±12 mA (min) (VCC = 3.0 V) IOH/IOL = ±9mA (min) (VCC = 2.3 V) IOH/IOL = ±3 mA (min) (VCC = 1.65 V) ? Latch-up performance: -300 mA ? ESD performance: Machine model ≥ ±200 V Human body model ≥ ±2000 V ? Ultra-small package: WCSP6 ? Power-down protection is provided on all inputs and outputs |
| 描述与应用 |
双电源2输入或非门与电平转换器;?接口1.2-V，1.8 V，1.2-V到2.5 V，1.2-V到3.3 V，1.5 V，2.5 V，1.5 V至3.3 V，1.8 V的电平转换器 2.5 V，1.8 V至3.3 V或2.5 V至3.3 V系统。 ?高速操作：TPD =6.8纳秒（最大）（VCCA=2.5±0.2 V VCCB=3.3±0.3 V） ??????TPD =7.8纳秒（最大）（VCCA=1.8±0.15 V，VCCB=3.3±0.3 V） ??????TPD =9.0 ns（最大）（VCCA=1.5±0.1 V VCCB=3.3±0.3 V） ??????TPD =31 ns（最大）（VCCA=1.2±0.1 V VCCB=3.3±0.3 V） ??????TPD =9.5纳秒（最大值）（VCCA=1.8±0.15 V，VCCB=2.5±0.2 V） ????????TPD =10.5 ns（最大）（VCCA=1.5±0.1 V VCCB=2.5±0.2 V） ????????TPD =32 ns（最大）（VCCA=1.2±0.1 V，VCCB=2.5±0.2 V） ????????TPD =37 ns（最大）（VCCA=1.2±0.1 V VCCB=1.8±0.15 V） ?输出电流：IOH/ IOL=±12 mA（分钟）（VCC=3.0 V） ??????IOH/ IOL=±9毫安（分钟）（VCC=2.3 V） ??????IOH/ IOL=±3 mA（分钟）（VCC= 1.65 V） ?闭锁性能：-300毫安 ?ESD性能：机器型号≥±200 V ??人体模型≥±2000 V ?超小封装：WCSP6 ?掉电保护是对所有的输入和输出 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| TC7SP3067TU |
EPD |
TOSHIBA |
05+ |
uf6 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SP381WBG |
L |
TOSHIBA |
12+ROHS |
WCSP6 |
9000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-变换器Translator |
查看 |
| TC7SP308WBG |
h |
TOSHIBA |
12+ROHS |
WCSP6 |
9000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| TC7SP386WBG |
M |
TOSHIBA |
12+ROHS |
WCSP6 |
9000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-变换器Translator |
查看 |
| TC7SP302WBG |
j |
TOSHIBA |
12+ROHS |
WCSP6 |
9000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-逻辑门Gate |
查看 |
| TC7SP332WBG |
k |
TOSHIBA |
12+ROHS |
WCSP6 |
6000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-变换器Translator |
查看 |
| TC7SP3125TU |
EPA |
TOSHIBA |
12+ROHS |
WCSP6 |
24000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SP3125TU |
EPA |
TOSHIBA |
12+ROHS |
WCSP6 |
6000 |
集成电路ICIntegrated Circuit（IC）-其它Other |
查看 |
|
|
|
