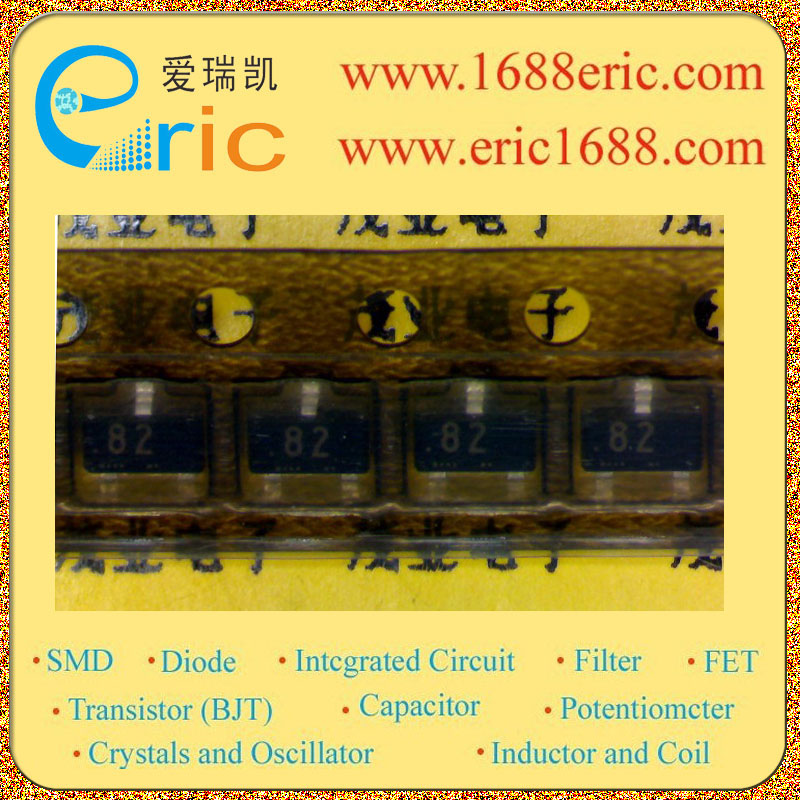

NNCD8.2E 82 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
|
| 反向击穿电压VBR
Breakdown Voltage |
8.2V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
100W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
|
| 额定耗散功率Pd
Power dissipation |
0.2W/200mW |
| Description & Applications |
FEATURES ? E.S.D NOISE CLIPPING DIODES ? ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES(200 mW TYPE) ? Based on the electrostatic discharge immunity test (IEC1000-4-2), the product assures the minimum endurance of 30 kV. ? Based on the reference supply of the set, the product achieves a series over a wide range (15 product name lined up). APPLICATIONS ? External interface circuit E.S.D protection. ? Circuits for Waveform clipper, Surge absorber. |
| 描述与应用 |
特点 ?ESD噪音限幅二极管 ?静电放电噪声限幅二极管（200毫瓦式） ?基于静电放电抗扰度试验（IEC61000-4-2），该产品保证30千伏最小耐力。 ?基于基准电源的设置，产品达到一系列在很宽的范围内（15个产品名称排队）。 应用 ?外部接口电路E.S.D保护。 ?波形剪，浪涌吸收电路。 |
