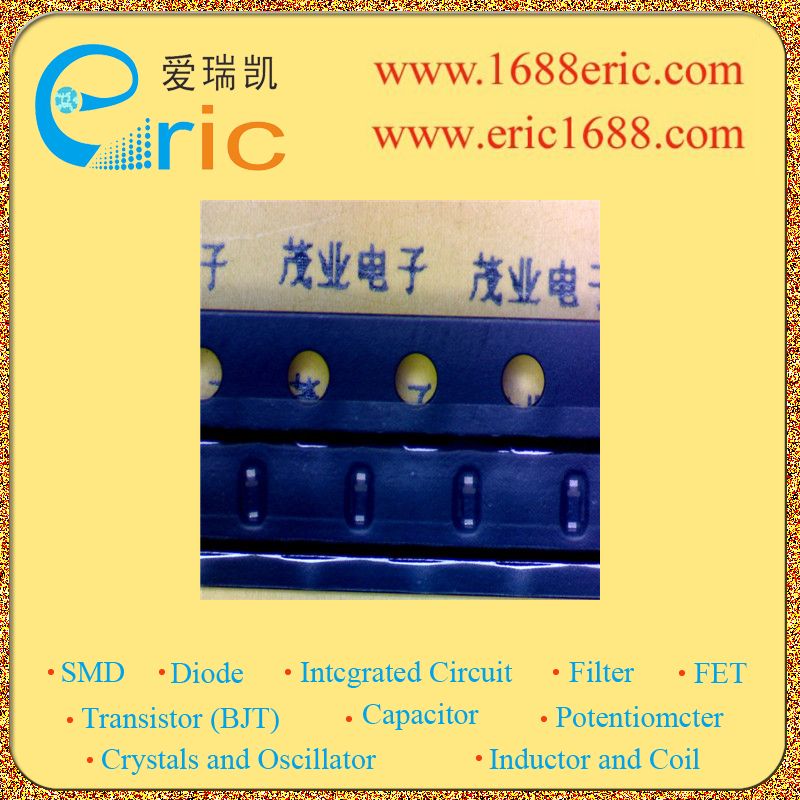

NNCD8.2J 的参数 |
极性
Polarization |
单向 Unidirectional |
反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
|
反向击穿电压VBR
Breakdown Voltage |
8.2V |
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
85W |
峰值脉冲电流IPPm
Peak Forward Surge Current |
|
额定耗散功率Pd
Power dissipation |
0.15W/150mW |
Description & Applications |
FEATURES ? E.S.D NOISE CLIPPING DIODES ? ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODE 2-PIN ULTRA SUPER MINI MOLD (FLAT TYPE) ? Base on the electrostatic discharge immunity test (IEC 61000-4-2), the product assures the minimum endurance. ? Mounted in the ultra super mini mold (flat) package, the product can achiever high density and automatic packaging. APPLICATIONS ? External interface circuit ESD absorption. ? Circuits for waveform clipper, surge absorber |
描述与应用 |
特点 ?E.S.D噪音限幅二极管 ?静电放电噪声削波二极管2针超超MINI模具(平板型) ?基本的静电放电抗扰度试验(IEC61000-4-2),产品保证了最低耐力。 ?超超级迷你模具(平)包,安装在产品可以成功者高密度和自动包装。 应用 ?外部接口电路的ESD吸收。 ?波形剪,浪涌吸收电路 |
