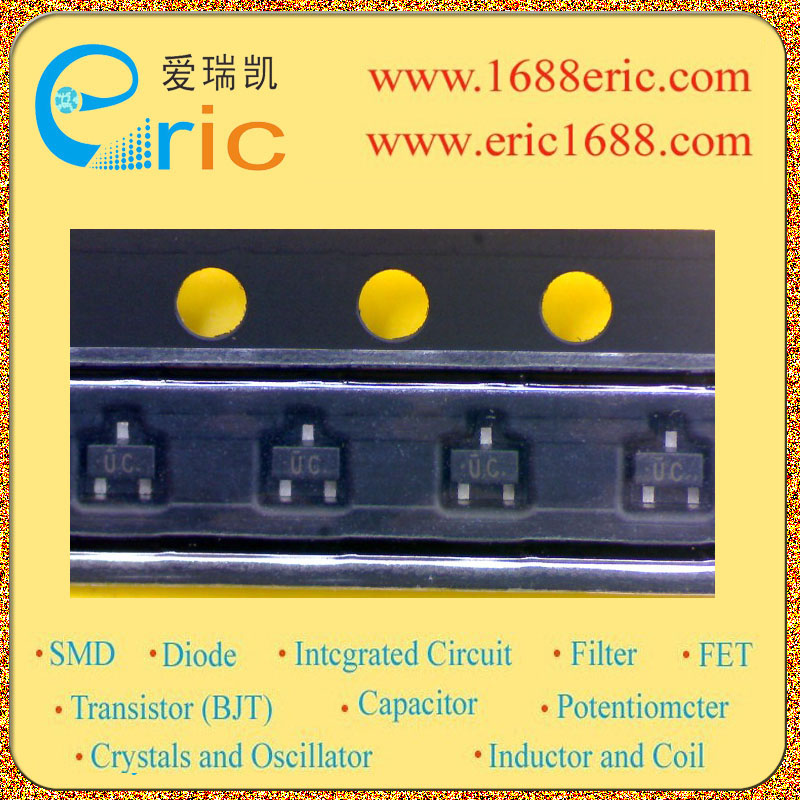

2SC4627GCL UC 的参数 |
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
30V |
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
20V |
集电极连续输出电流IC
Collector Current(IC) |
15mA |
截止频率fT
Transtion Frequency(fT) |
650MHz |
直流电流增益hFE
DC Current Gain(hFE) |
40~260 |
管压降VCE(sat)
Collector-Emitter Saturation Voltage |
|
耗散功率Pc
Power Dissipation |
125mW/0.125W |
Description & Applications |
Features ?Silicon NPN epitaxial planar type ?For high-frequency amplification ?Optimum for RF amplification of FM/AM radios ?High transition frequency fT ?SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing |
描述与应用 |
特点 ?NPN硅外延平面型 ?对于高频放大 ?FM/ AM收音机,最适用于射频放大 ?高转换频率fT ?SS-迷你型包装,使瘦身的设备和通过自动插入磁带包装 |
