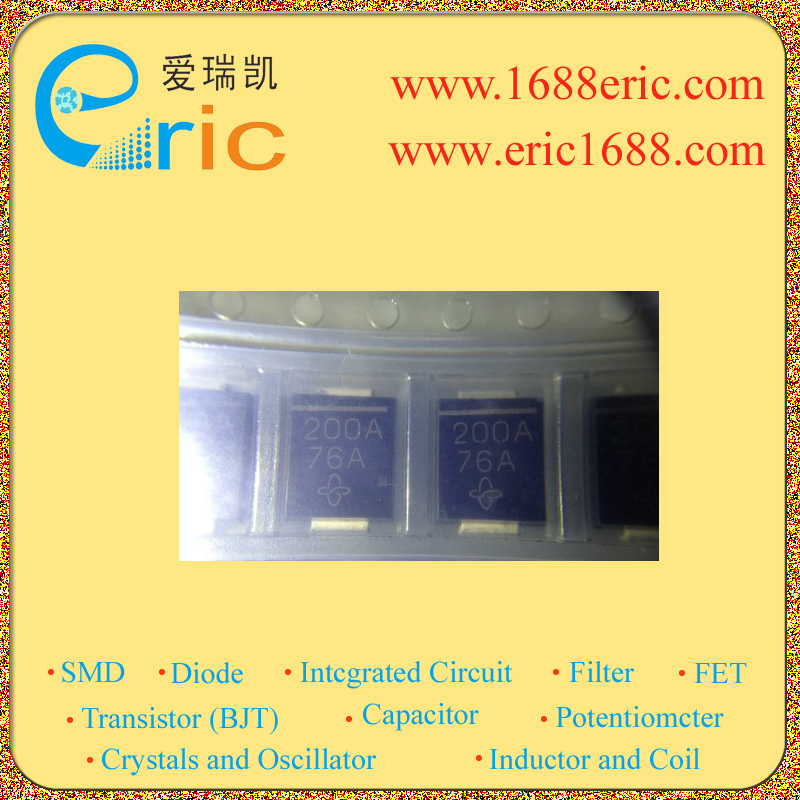

1.5SMC200A-E3/57T 200A 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
171V |
| 反向击穿电压VBR
Breakdown Voltage |
200V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
1500W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
5.5A |
| 额定耗散功率Pd
Power dissipation |
6.5W |
| Description & Applications |
Surface Mount Transient Voltage Suppressors；Features ? Low profile package with built-in strain relief for surface mounted applications ? Glass passivated junction ? Low incremental surge resistance ? Low inductance ? Excellent clamping capability ? 1500W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle): 0.01% ? Very fast response time ? Plastic package has Underwriters Laboratory Flammability Classification 94V-0 |
| 描述与应用 |
表面贴装瞬态电压抑制器;特性 ?这个器件是薄型封装的，这样的封装才有利于或方便表面安装 ?玻璃钝化结 ?低阻力增量激增 ?低电感 ?优秀的钳位性能 ?1500 w峰值脉冲功率容量与10/1000μs 波形重复率(周期性):0.01% ?非常快的响应时间 ?塑料包保险商实验室 可燃性分类94V-0 |
