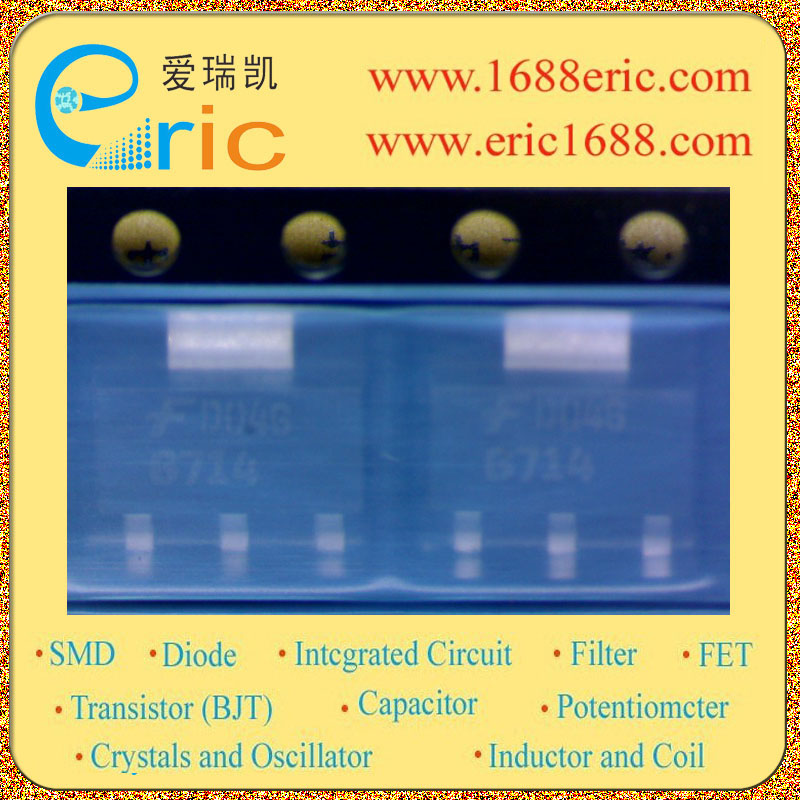

NZT6714 B714 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
40V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
30V |
| 集电极连续输出电流IC
Collector Current(IC) |
2A |
| 截止频率fT
Transtion Frequency(fT) |
|
| 直流电流增益hFE
DC Current Gain(hFE) |
2.5~25 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
500mV/0.5V |
| 耗散功率Pc
Power Dissipation |
1W |
| Description & Applications |
This device is designed for general purpose medium power amplifiers and switches requiring collector currents to 1.5 A. Sourced from Process 37. |
| 描述与应用 |
这个装置是专为通用中功率放大器和开关要求集电极电流为1.5 A 。 |
