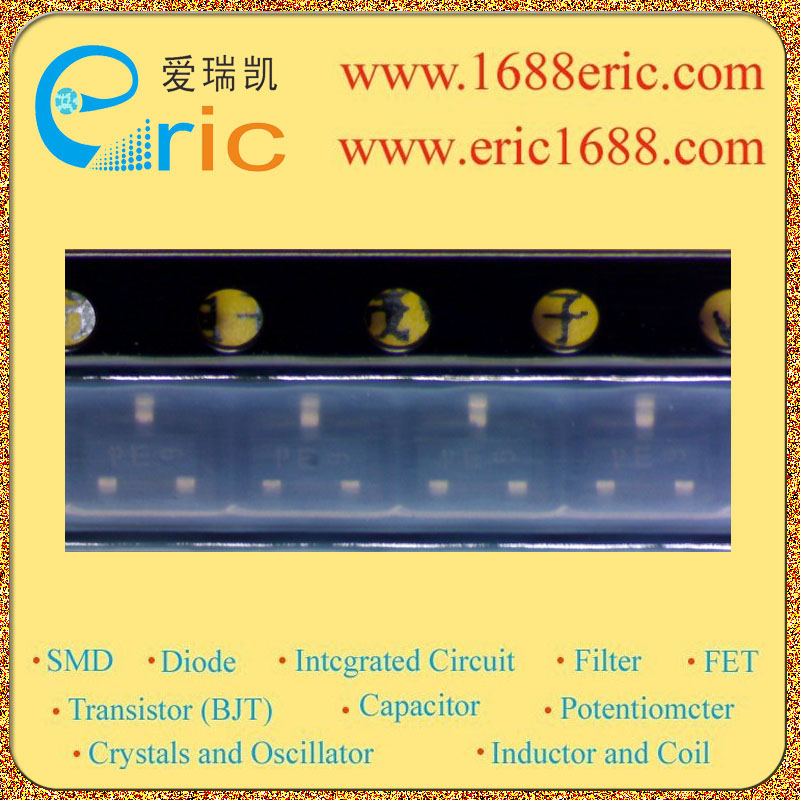

NTR1P02ELT1 PE 的参数 |
最大源漏极电压Vds
Drain-Source Voltage |
-20V |
最大栅源极电压Vgs(±)
Gate-Source Voltage |
20V |
最大漏极电流Id
Drain Current |
-0.4A |
源漏极导通电阻Rds
Drain-Source On-State
Resistance |
0.55Ω @-200mA,-10V |
开启电压Vgs(th)
Gate-Source Threshold Voltage |
-1.1--2.83 |
耗散功率Pd
Power Dissipation |
225mW/0.225W |
Description & Applications |
Features ? Low RDS(on) Provides Higher Efficiency and Extends Battery Life RDSon = 0.80 , VGS = ?10 V RDSon = 1.10 , VGS = ?4.5 V ? Miniature SOT?23 Surface Mount Package Saves Board Space ? Pb?Free Package is Available |
描述与应用 |
?低的RDS(on) 提供更高的效率和延长电池寿命 的RDSon,VGS=0.80= -10 V 导通电阻RDSon= 1.10,VGS=-4.5 V ?微型SOT-23表面贴装封装节省电路板空间 ?无铅包装是可用 |
