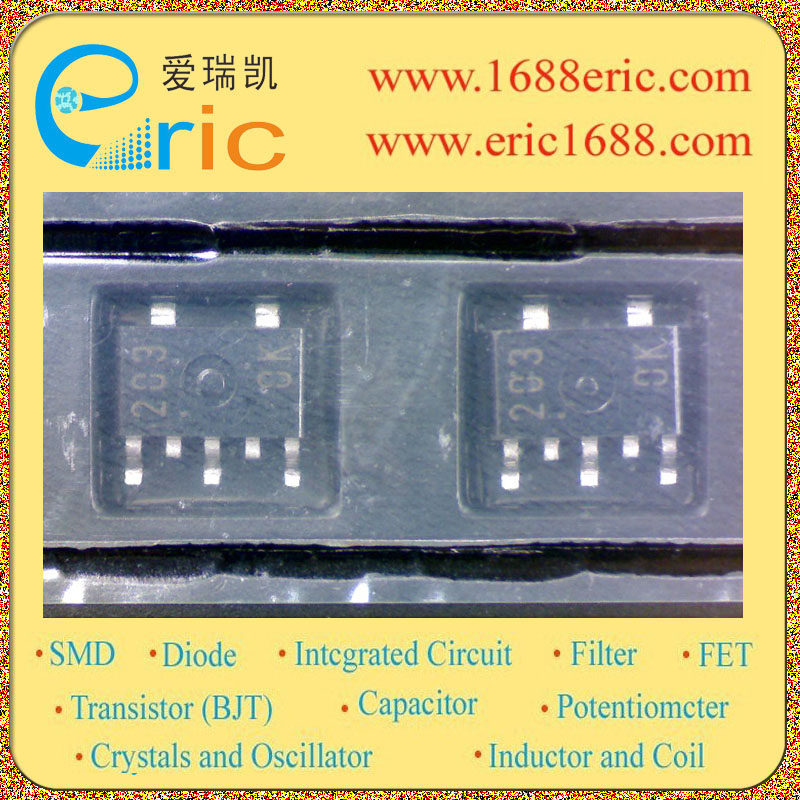

FP203 203 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-60V/60V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
-50V/50V |
| 集电极连续输出电流IC
Collector Current(IC) |
-1A/1A |
| 截止频率fT
Transtion Frequency(fT) |
150MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
140~400 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
-180mV/120mV |
| 耗散功率Pc
Power Dissipation |
1000mW |
| Description & Applications |
Features ? PNP/NPN Epitaxial Planar Silicon Transistor ? Push-Pull Circuit Applications ? Composite type with 2 transistors of PNP transistor and NPN transistor,facilitating high-density mounting. ? The FP203 is formed with chips, being equivalent to the 2SB1122 and 2SD1622, placed in one package. |
| 描述与应用 |
特点 ?PNP/ NPN平面外延硅晶体管 ?推挽电路应用 ?复合型2个晶体管的PNP晶体管和NPN晶体管，促进高密度安装。 ?FP203形成芯片，相当于2SB1122和2SD1622，放置在一个包装 |
