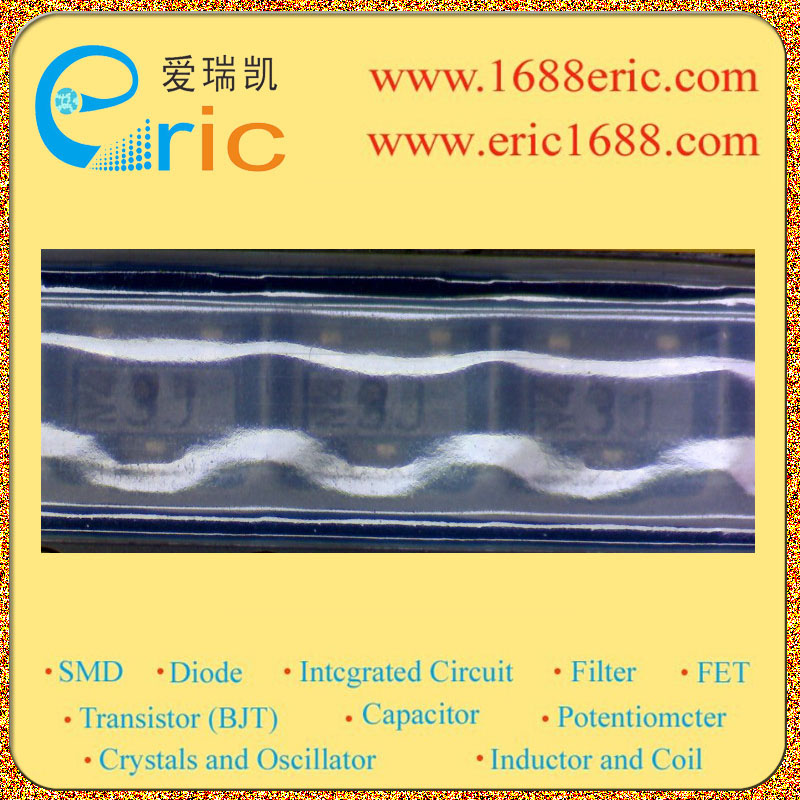

BC858A
 型号:  BC858A
 标记/丝印/代码/打字:  3J
 厂家:  CENTRAL
 封装:  SOT-23/SC-59
 批号:  05+
 库存数量:  9000
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  PNP
 技术文档PDF:  在线阅读

 在线购买

BC858A 3J 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) ?30V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) ?30V
集电极连续输出电流IC Collector Current(IC) ?100mA/-0.1A
截止频率fT Transtion Frequency(fT) 100MHz
直流电流增益hFE DC Current Gain(hFE) 125~250
管压降VCE(sat) Collector-Emitter SaturationVoltage ?650mV/-0.65V
耗散功率Pc PoWer Dissipation 350mW/0.35W
Description & Applications SURFACE MOUNT PNP SILICON TRANSISTOR DESCRIPTION: The CENTRAL SEMICONDUCTOR BC856,BC857 and BC858 Series types are PNP Silicon Transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications.
描述与应用 表面贴装PNP硅晶体管 产品描述: 中央半导体BC856,BC857和BC858系列类型PNP硅 晶体管制造外延平面工艺,环氧树脂模压在一个表面贴装封装,专为一般用途的开关和放大器应用。
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
BC858B G3K ROHM 05+ SOT-23 1000 标记 查看
BC858 3M NXP/PHILIPS 05+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858A 3J CENTRAL 05+ SOT-23/SC-59 9000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858B 3K INFINEON 05+ SOT-23/SC-59 6000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858BMTF 9CB FAIRCHILD 10+ROHS SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858BDWT1 3F ON 04+ SOT-363/SC-88 0 三极管Bipolar Junction Transistors(BJT)-复合三极管Complex Bipolar Transistor-PNP+PNP 查看
BC858BU AVB AUK 05+ SOT-323/SC-70 57000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858BW 3K INFINEON 11+ROHS SOT-323/SC-70 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858CTA CL ZETEX 05+ SOT-23 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858CW 3L NXP/PHILIPS 05+ SOT-323/SC-70 3000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858W 3M NXP/PHILIPS 05+ SOT-323/SC-70 9000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858B 3K ON 05+3Knopb SOT-23/SC-59 6000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858C 3L INFINEON 10nopb SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858CMTF 9CC FAIRCHILD 05nopb SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
TBC858B 3K TOSHIBA 05+ SOT-23/SC-59 3000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858B 3K NXP/PHILIPS 07+3kROHS SOT-23/SC-59 6000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858CLT1 3L ON 05+ SOT-23/SC-59 3000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858BL3 3K INFINEON 04+ TSLP-3-1 7000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858C 3L VISHAY 05+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BC858C 3L VISHAY 05+ SOT-23/SC-59 6000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
