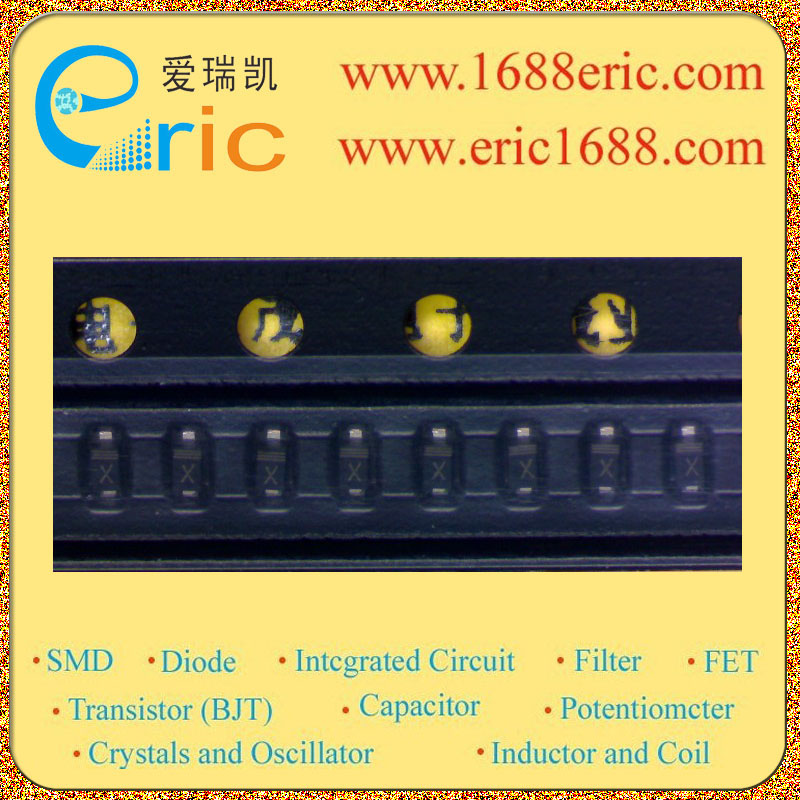

BB187 X 的参数 |
反向电压VR
Reverse Voltage |
32V |
电容值C
Diode capacitance |
29.3pF?34.2pF |
@反向电压VR
@Reverse Voltage |
2V |
电容值C
Diode capacitance |
2.57pF?2.92pF |
@反向电压VR
@Reverse Voltage |
25V |
电容比
Capacitance ratio |
11 |
Description & Applications |
VHF variable capacitance diode DESCRIPTION The BB187 is a planar technology variable capacitance diode in a SOD523 (SC-79) package. The excellent matching performance is achieved by gliding matching and adirect matching assembly procedure. Electronic tuning in VHF television tuners VCO High linearity Excellent matching to 2% DMA Ultra small plastic SMD package C25: 2.75 pF; ratio 12 Low series resistance |
描述与应用 |
甚高频可变电容二极管 说明 BB187是一个平面技术 在一个可变电容二极管 SOD523(SC-79)封装。该优良的匹配性能 滑翔匹配和实现直接匹配汇编程序 用于甚高频电视调谐器的电气调谐 压控振荡器 高线性度 出色的匹配至2%的DMA 超小的塑料贴片封装 C25:2.75 pF;比率12 低串联电阻 |
技术文档PDF下载 |
在线阅读 |
|
|
|
|
相关型号列表 |
型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
BB182 |
2 |
NXP/PHILIPS |
02+ |
SOD-523/SC-79/ESC/0603 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
BB182 |
2 |
NXP/PHILIPS |
05+ |
SOD-523/SC-79/ESC/0603 |
8720 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
BB187 |
X |
NXP/PHILIPS |
03+ |
SOD-523/SC-79/ESC/0603 |
800 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
BB181 |
N |
NXP/PHILIPS |
0950NOPB |
SOD-523/SC-79/ESC/0603 |
36000 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
BB181 |
N |
NXP/PHILIPS |
09+ROHS |
SOD-523/SC-79/ESC/0603 |
354000 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
|
|
|
