BB182 2 的参数 |
| 反向电压VR
Reverse Voltage |
32V |
| 电容值C
Diode capacitance |
52pF? 62pF |
| @反向电压VR
@Reverse Voltage |
1V |
| 电容值C
Diode capacitance |
2.48pF? 2.89pF |
| @反向电压VR
@Reverse Voltage |
28V |
| 电容比
Capacitance ratio |
20.6 |
| Description & Applications |
VHF variable capacitance diode DESCRIPTION The BB182 is a planar technology variable capacitance diode, in a SOD523 (SC-79) package. The excellent matching performance is achieved by gliding matching and a direct matching assembly procedure Electronic tuning in VHF television tuners, band A up to 160 MHz VCO High linearity Excellent matching to 2% DMA Ultra small plastic SMD package C28: 2.7 pF; ratio: 22 Low series resistance |
| 描述与应用 |
甚高频可变电容二极管 说明 BB182是一个平面技术 变容二极管，在 SOD523（SC-79）封装。该优良的匹配性能 滑翔匹配和实现直接匹配汇编程序 用于甚高频电视调谐器的电气调谐,频带A高达160 MHz 压控振荡器 高线性度 出色的匹配至2％的DMA 超小的塑料贴片封装 C28：2.7 pF比率：22 低串联电阻 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |

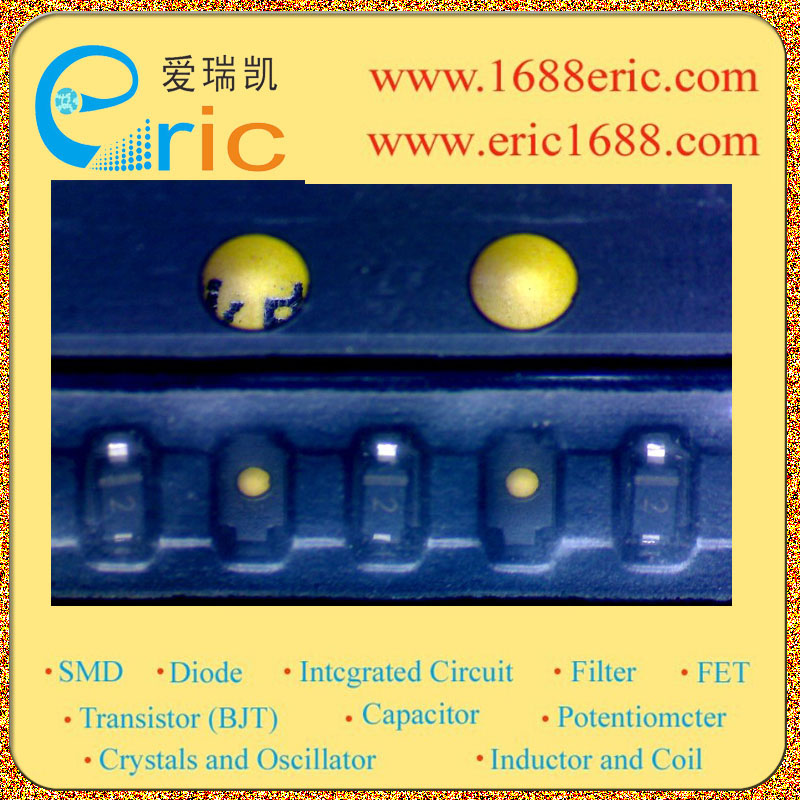

| BB182 |
2 |
NXP/PHILIPS |
02+ |
SOD-523/SC-79/ESC/0603 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB182 |
2 |
NXP/PHILIPS |
05+ |
SOD-523/SC-79/ESC/0603 |
8720 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB187 |
X |
NXP/PHILIPS |
03+ |
SOD-523/SC-79/ESC/0603 |
800 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB181 |
N |
NXP/PHILIPS |
0950NOPB |
SOD-523/SC-79/ESC/0603 |
36000 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
| BB181 |
N |
NXP/PHILIPS |
09+ROHS |
SOD-523/SC-79/ESC/0603 |
354000 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-单管Single |
查看 |
|
|
|
