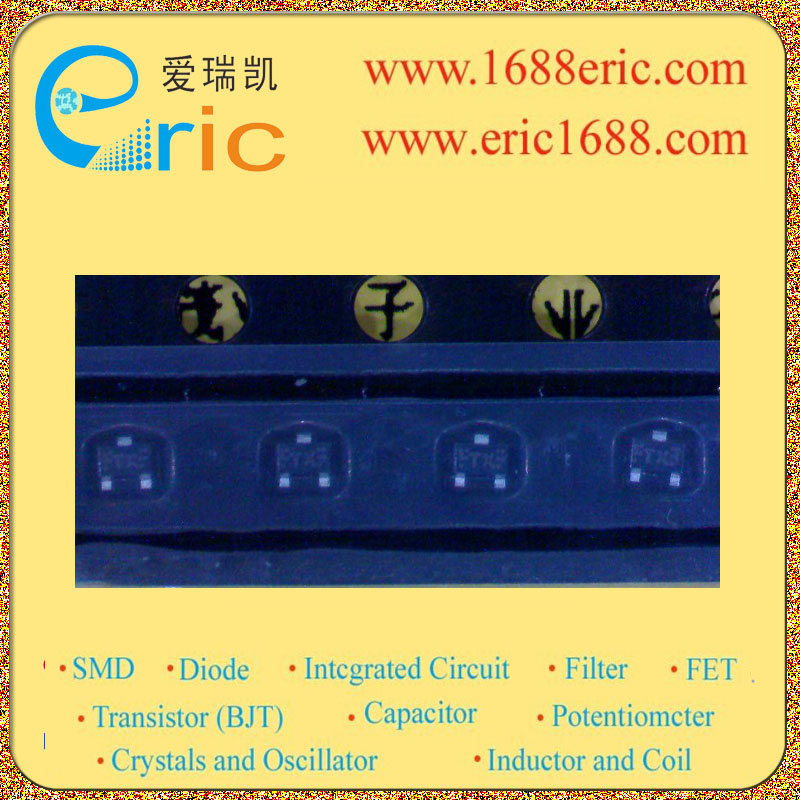

2SC5736-T1 TX 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
15V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
5V |
| 集电极连续输出电流IC
Collector Current(IC) |
100mA/0.1A |
| 截止频率fT
Transtion Frequency(fT) |
5GHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
100~145 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
|
| 耗散功率Pc
Power Dissipation |
200mW/0.2W |
| Description & Applications |
NPN SILICON RF TRANSISTOR FOR HIGH-FREQUENCY LOW NOISE FLAT-LEAD 3-PIN THIN-TYPE ULTRA SUPER MINIMOLD FEATURES ? Low voltage operation, low phase distortion ? Ideal for OSC applications ? Flat-lead 3-pin thin-type ultra super minimold package |
| 描述与应用 |
NPN硅RF晶体管 高频低噪声 扁平引线3引脚超薄型超超迷你 特点 ?低电压工作，低相位失真 ?OSC申请非常适于 ?扁平引线3引脚薄型超超迷你包装 |
