2SC5730 T146Q
 型号:  2SC5730 T146Q

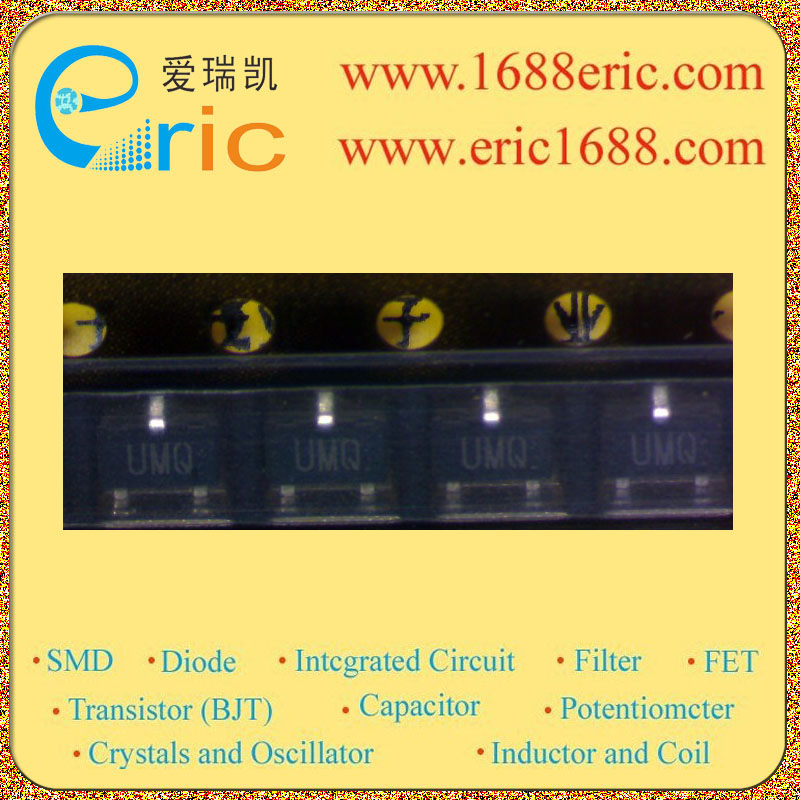

 标记/丝印/代码/打字:  UMQ
 厂家:  ROHM
 封装:  SOT-23/SC-59/SMT3
 批号:  03+
 库存数量:  2000
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  NPN
 技术文档PDF:  在线阅读

 在线购买

2SC5730 T146Q UMQ 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) 30V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) 30V
集电极连续输出电流IC Collector Current(IC) 1A
截止频率fT Transtion Frequency(fT) 270MHz
直流电流增益hFE DC Current Gain(hFE) 120~270
管压降VCE(sat) Collector-Emitter Saturation Voltage 150mV/0.15V
耗散功率Pc Power Dissipation 500mW/0.5W
Description & Applications Medium power transistor Features 1) High speed switching. (Tf : Typ. : 35ns at IC = 1.0A) 2) Low saturation voltage, typically (Typ. : 150mV at IC = 500mA, IB = 50mA) 3) Strong discharge power for inductive load and capacitance load. Applications Small signal low frequency amplifier High speed switching Structure NPN Silicon epitaxial planar transistor
描述与应用 中等功率晶体管 特点 1)高速开关。 (TF:典型:为35ns IC=1.0A) 2)低饱和电压,通常 ??(典型值150mV的IC=500mA,可IB=50毫安) 3)感性负载和放电功率强 电容负载。 应用 低频小信号放大器 高速开关 结构 NPN硅外延平面型晶体管
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
2SC5730 T146Q UMQ ROHM 03+ SOT-23/SC-59/SMT3 2000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC5730 T146R UMR ROHM 07NOPB189KM+9600 SOT-23/SC-59/SMT3 198140 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC5730 T146R UMR ROHM 07NOPB SOT-23/SC-59/SMT3 48000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC5736 TX NEC 05+ SOT-523 20800 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC5736-T1 TX NEC 05+ SOT-523 45000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC5733 T100R UUR ROHM 08NOPB SOT-89/SC-62/MPT3 800 三极管Bipolar Junction Transistors(BJT)-NPN 查看
2SC5734K T146Q UPQ ROHM 03+ SOT-23/SC-59/SMT3 2900 三极管Bipolar Junction Transistors(BJT)-NPN 查看
