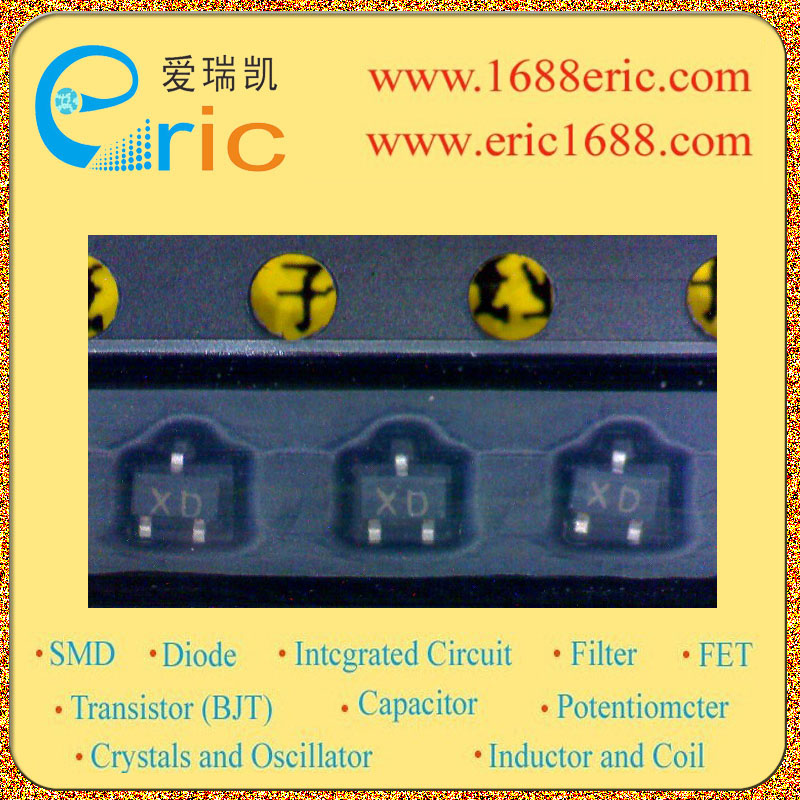

RN1104MFV XD 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V |
| 集电极连续输出电流IC
Collector Current(IC) |
100mA/0.1A |
| 基极输入电阻R1
Input Resistance(R1) |
47KΩ/Ohm |
| 基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
47KΩ/Ohm |
| 电阻比(R1/R2)
Resistance Ratio |
1 |
| 直流电流增益hFE
DC Current Gain(hFE) |
80 |
| 截止频率fT
Transtion Frequency(fT) |
|
| 耗散功率Pc
Power Dissipation |
0.15W/150mW |
| Description & Applications |
Features Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications Ultra-small package, suited to very high density mounting Incorporating a bias resistor into the transistor reduces the number of parts, so enabling the manufacture of ever more compact equipment and lowering assembly cost. A wide range of resistor values is available for use in various circuits. Complementary to the RN2104MFV |
| 描述与应用 |
特性 开关，逆变电路，接口电路和驱动器电路应用 适合非常高密度安装超小型封装， 结合到晶体管偏置电阻器减少部件的数量，所以能够制造比更紧凑设备并降低装配成本。 宽范围的电阻值是可用于在各种电路。 对管是RN2104MFV |
