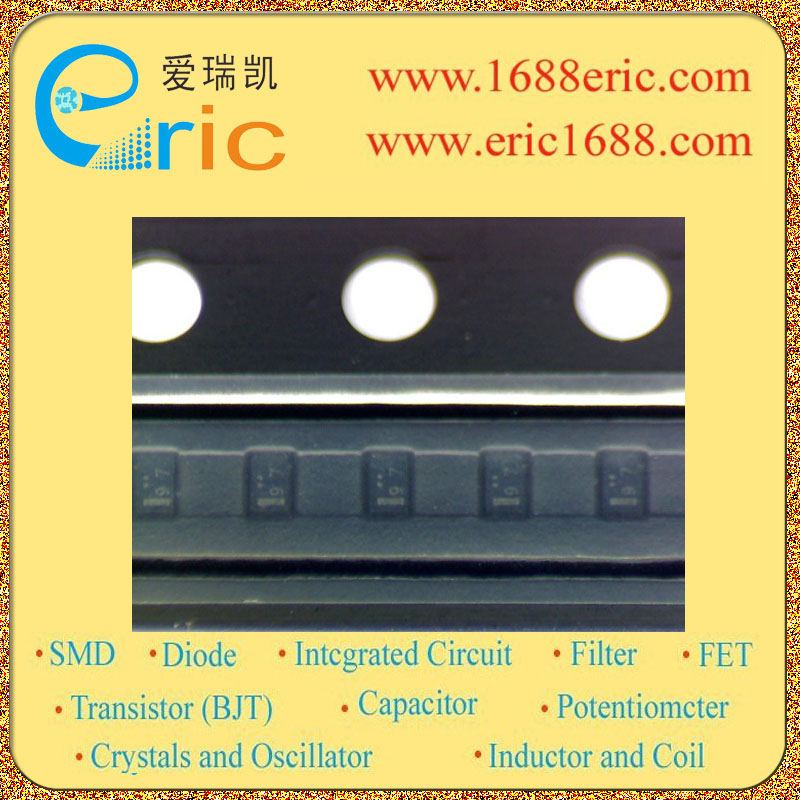

2SK3582CT-B 97 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
20v |
| 栅源极击穿电压V(BR)GS
Gate-Source Voltage |
-20v |
| 漏极电流(Vgs=0V)IDSS
Drain Current |
0.08~0.3ma |
| 关断电压Vgs(off)
Gate-Source Cut-off Voltage |
-0.1~-0.65v |
| 耗散功率Pd
Power Dissipation |
80mw |
| Description & Applications |
?Silicon N-Channel Junction FET Electret condenser microphone - Ideal for Mini Microphone for CSP package of 1.0 × 0.6 × 0.38 mmt ? The excellent reduced voltage characteristic · We have excellent transient response |
| 描述与应用 |
?硅N沟道结型场效应管 驻极体电容式麦克风 - 非常适于微型麦克风CSP封装的1.0×0.6×0.38亿吨 ?优秀的降低电压特性 ·出色的瞬态响应 |
