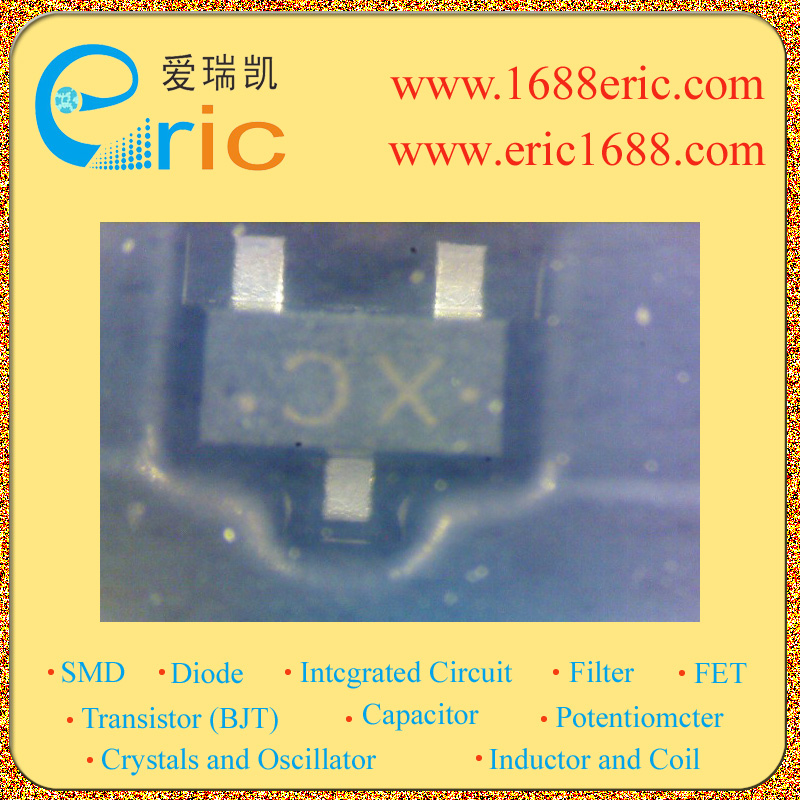

RN1103F XC 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V |
| 集电极连续输出电流IC
Collector Current(IC) |
100mA/0.1A |
| 基极输入电阻R1
Input Resistance(R1) |
22KΩ/Ohm |
| 基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
22KΩ/Ohm |
| 电阻比(R1/R2)
Resistance Ratio |
1 |
| 直流电流增益hFE
DC Current Gain(hFE) |
70 |
| 截止频率fT
Transtion Frequency(fT) |
250MHz |
| 耗散功率Pc
Power Dissipation |
0.1W/100mW |
| Description & Applications |
Features Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN2103F |
| 描述与应用 |
特性 开关电路，逆变电路，接口电路和驱动器电路应用 具有内置的偏置电阻 简化电路设计 数量减少了零件和制造工艺 对管是RN2103F |
