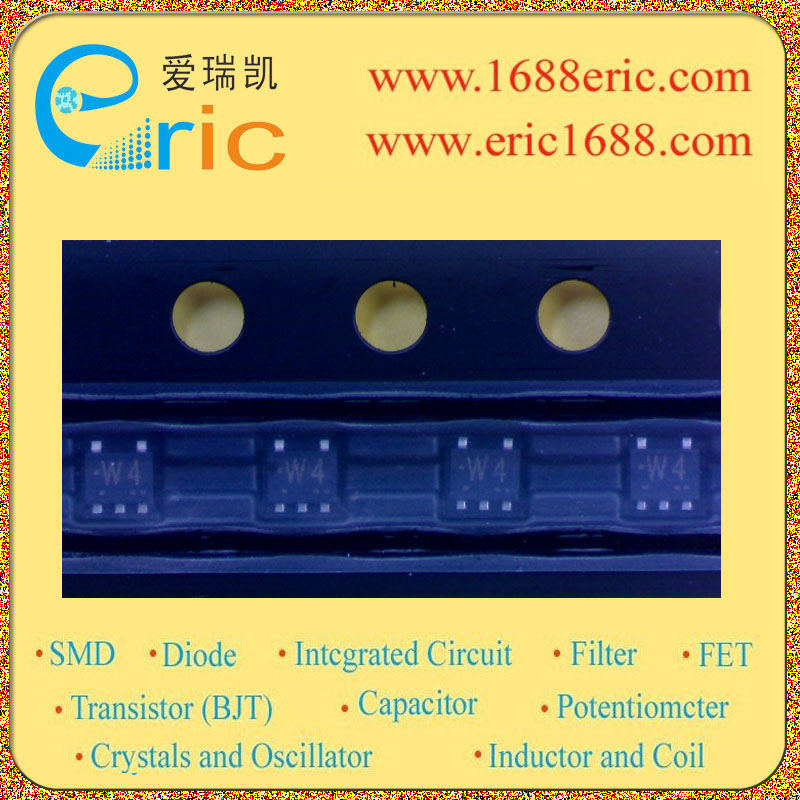

TC7SG32FE W4 的参数 |
| 逻辑类型
Logic Type |
或门 OR Gate |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
2 |
| 电源电压Vcc
Voltage - Supply |
0.9v~3.6V |
| 静态电流Iq
Current - Quiescent (Max) |
10uA |
| 输出高，低电平电流
Current - Output High, Low |
-8mA,8mA |
| 低逻辑电平
Logic Level - Low |
0.7V~0.8V |
| 高逻辑电平
Logic Level - High |
1.7V~2v |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
21ns @3.3V ，15pF |
| Description & Applications |
2-Input OR Gate ；? High output current : ±8 mA (min) at VCC = 3.0 V ? Super high speed operation : tpd = 2.4 ns (typ.) at VCC = 3.3 V,15pF ? Operating voltage range : VCC = 0.9 to 3.6 V ? 5.5-V tolerant inputs ? 3.6-V power down protection output |
| 描述与应用 |
2输入或门;?高输出电流：±8毫安VCC=3.0 V（分钟） ?超高速运转：TPD =2.4 ns（典型值） 在VCC =3.3 V，15PF ?工作电压范围：VCC= 0.9到3.6 V ?5.5-V宽容输入 ?3.6-V断电保护输出 |
