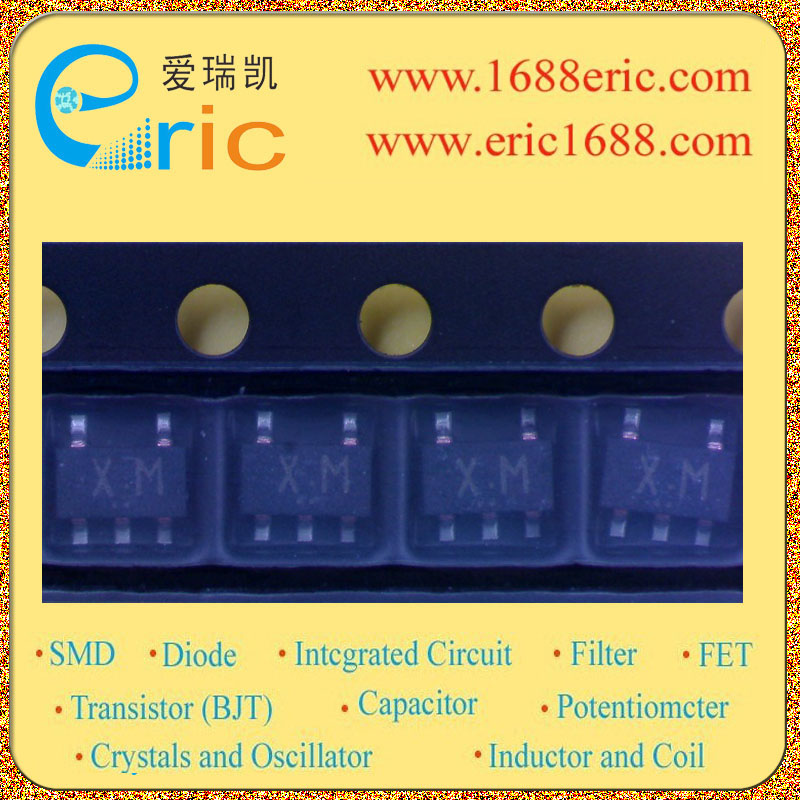

RN1511 XM 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V |
| 集电极连续输出电流IC
Collector Current(IC) |
100mA |
| Q1基极输入电阻R1
Input Resistance(R1) |
10KΩ/Ohm |
| Q1基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
|
| Q1电阻比(R1/R2)
Q1 Resistance Ratio |
|
| Q2基极输入电阻R1
Input Resistance(R1) |
10KΩ/Ohm |
| Q2基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
|
| Q2电阻比(R1/R2)
Q2 Resistance Ratio |
|
| 直流电流增益hFE
DC Current Gain(hFE) |
120~700 |
| 截止频率fT
Transtion Frequency(fT) |
250MHz |
| 耗散功率Pc
Power Dissipation |
300mW/0.3W |
| Description & Applications |
Features ? TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) ? Including two devices in SMV (super mini type with 5 leads) ? With built-in bias resistors ? Simplify circuit design ? Reduce a quantity of parts and manufacturing process ? Complementary to RN2510~RN2511 APPLICATIONS ? Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications |
| 描述与应用 |
特点 ?东芝晶体管的硅NPN外延型（PCT工艺）包括两个设备中的SMV（超迷你型5导线） ?借助内置的偏置电阻 ?简化电路设计 ?减少了部件数量和制造工艺 ?互补RN2510~~ RN2511 应用 ?开关，逆变电路，接口电路和驱动器电路应用 |
