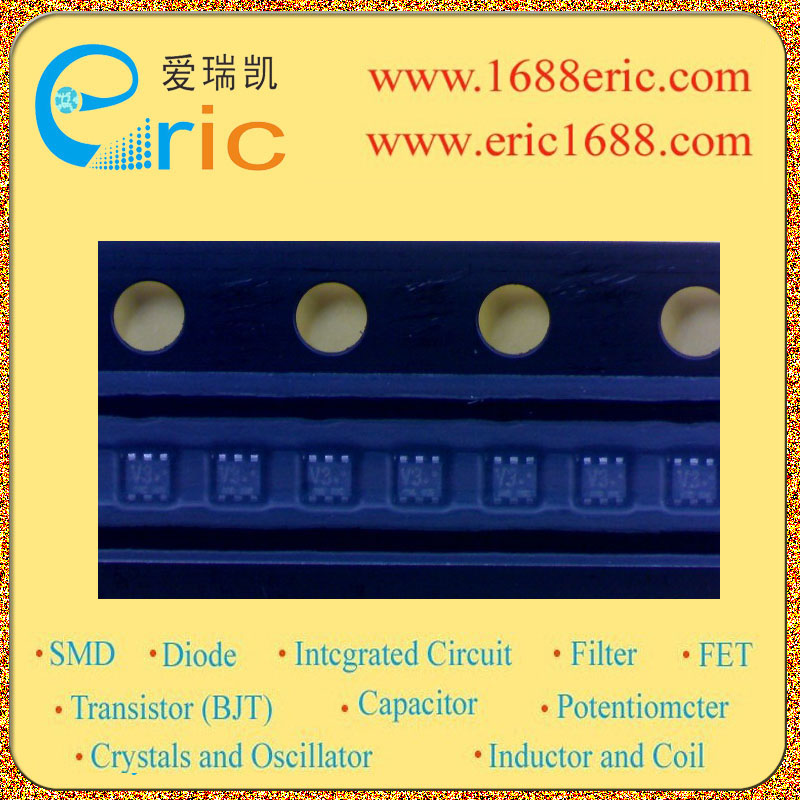

RN4984AFS V3 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
50V/-50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V/-50V |
| 集电极连续输出电流IC
Collector Current(IC) |
80mA/-80mA |
| Q1基极输入电阻R1
Input Resistance(R1) |
47KΩ/Ohm |
| Q1基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
47KΩ/Ohm |
| Q1电阻比(R1/R2)
Q1 Resistance Ratio |
1 |
| Q2基极输入电阻R1
Input Resistance(R1) |
47KΩ/Ohm |
| Q2基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
47KΩ/Ohm |
| Q2电阻比(R1/R2)
Q2 Resistance Ratio |
1 |
| 直流电流增益hFE
DC Current Gain(hFE) |
80 |
| 截止频率fT
Transtion Frequency(fT) |
|
| 耗散功率Pc
Power Dissipation |
50mW |
| Description & Applications |
Features ? TOSHIBA Transistor Silicon NPN·PNP Epitaxial Type(PCT Process) (Bias Resistor Built-in Transistor) ? Two devices are incorporated into a fine pitch small mold (6-pin) package. ? Incorporating a bias resistor into a transistor reduces parts count.Reducing the parts count enables the manufacture of ever more compact equipment and lowers assembly cost. Applications ? Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications. |
| 描述与应用 |
特点 ?东芝晶体管的硅NPN·PNP外延型的（PCT进程）内置-在晶体管的（偏置电阻） ?的有两台设备成一个罚款的俯仰小型模具（6 - 针）程序包注册成立。 ?将偏置电阻晶体管，减少了部件数量。减少部件数量，能够制造更加紧凑的设备和降低装配成本。 应用 ?开关，逆变电路，接口电路和驱动器电路应用 |
