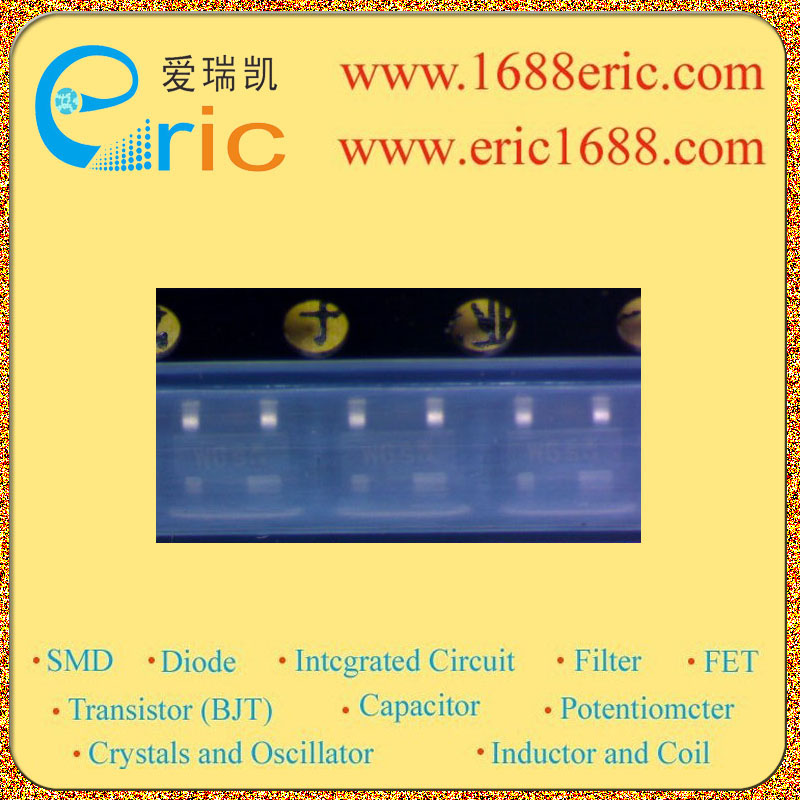

型号： |
BCR402R |
| 标记/丝印/代码/打字： |
W6S |
| 厂家： |
INFINEON |
| 封装： |
SOT-143 |
| 批号： |
08+ROHS |
| 库存数量： |
0 |
| 所属分类： |
电源管理ICPower Management IC/PMIC
LED驱动LED Driver |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
BCR402R W6S 的参数 |
| 恒流
Constant Current |
是 YES |
| 恒压
Constant Voltage |
|
| 拓扑
Topology |
线性 Linear |
| 输出数
Number of Outputs |
1 |
| 内部驱动器
Internal Driver |
是 YES |
| 初级类型
Type - Primary |
通用 General Purpose |
| 次级类型
Type - Secondary |
|
| 频率
Frequency |
|
| 电源电压
Voltage - Supply |
1.2V ~ 18V |
| 输出电压
Voltage - Output |
16V |
| Description & Applications |
FEATURES ? LED Driver ? LED drive current of 20mA ? Output current adjustable up to 60mA with external resistor ? Supply voltage up to 18V ? Easy paralleling of drivers to increase current ? Low voltage overhead of 1.2V ? High current accuracy at supply voltage variation ? No EMI ? Reduced output current at higher temperatures - negative thermal coefficient of -0.3% / K ? RoHS compliant (pb-free) SOT143R package ? Qualified according AEC Q101 Applications ? Channel letters for advertising, LED strips for decorative lighting ? Aircraft, train, ship illumination ? Retrofits for general lighting, white goods like refrigerator lighting ? Medical lighting |
| 描述与应用 |
特点 ?LED驱动器 ?LED驱动电流为20mA ?可调输出电流高达60mA外部电阻 ?电源电压高达18V ?易于并联驱动电流增加 ?低电压为1.2V的开销 ?高电流精度电源电压变化 ?没有EMI ?降低输出电流在较高的温度 - 负温度系数为-0.3％/ K ?符合RoHS（无铅）SOT143R封装 ?符合AEC Q101 应用 ?通道字母广告装饰照明，LED灯条 飞机，火车，船舶照明 ?一般照明，白色家电，如冰箱照明改造 ?医疗照明 |
| 技术文档PDF下载 |
在线阅读 |
|
|
|
|
|
