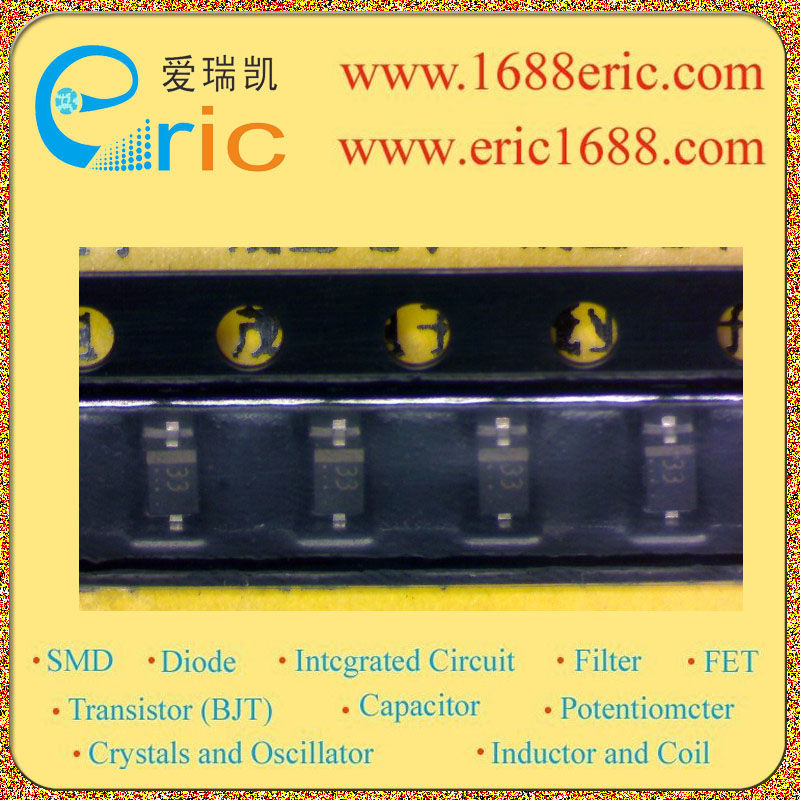

NNCD3.3D 33 的参数 |
极性
Polarization |
单向 Unidirectional |
反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
|
反向击穿电压VBR
Breakdown Voltage |
3.3V |
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
85W |
峰值脉冲电流IPPm
Peak Forward Surge Current |
|
额定耗散功率Pd
Power dissipation |
0.2W/200mW |
Description & Applications |
FEATURES ? ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES(200 mW TYPE) ? Based on the electrostatic discharge immunity test (IEC1000-4-2), the product assures the minimum endurance of 30 kV. ? Based on the reference supply of the set, the product achieves a series over a wide range (15 product name lined up). APPLICATIONS ? External interface circuit E.S.D protection. ? Circuits for Waveform clipper, Surge absorber. |
描述与应用 |
特点 ?静电放电噪声削波二极管(200毫瓦式) ?基于静电放电抗扰度试验(IEC1000-4-2),产品保证30千伏最小耐力。 ?基于基准电源的设置,产品达到一系列在很宽的范围内(15个产品名称排队)。 应用 ?外部接口电路E.S.D保护。 ?波形剪,浪涌吸收电路。 |
