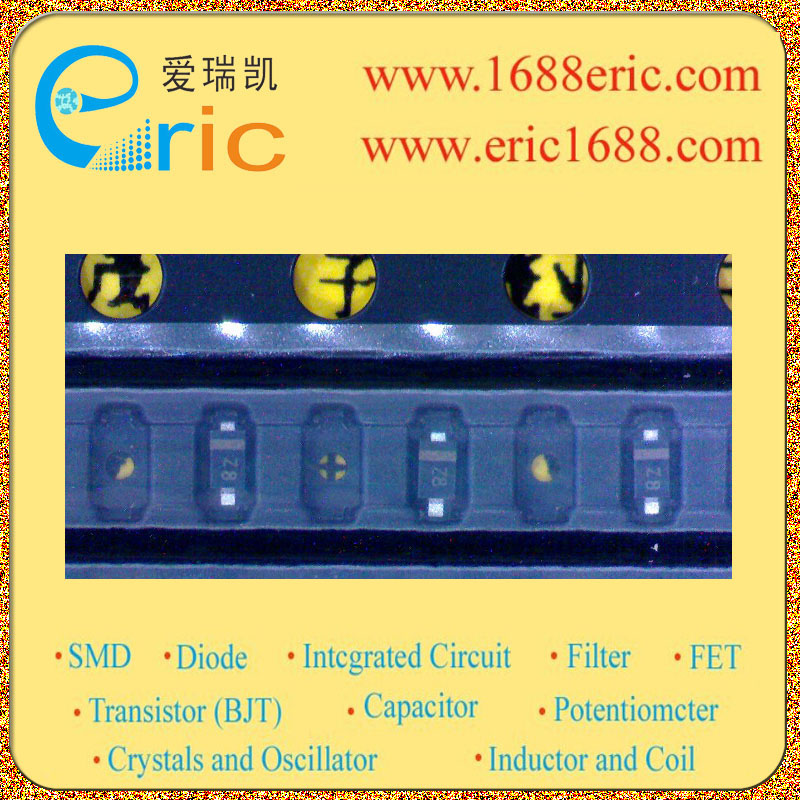

PESD5V0L1UB Z8 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5V |
| 反向击穿电压VBR
Breakdown Voltage |
6.4V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
42W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
3.5A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Features ?Low capacitance unidirectional ESD protection diodes ?ESD protection up to 26 kV ?Low diode capacitance: Cd = 25 pF ?IEC 61000-4-2; level 4 (ESD) ?Low clamping voltage: VCL = 12 V ?AEC-Q101 quali?ed ?Very low leakage current: IRM = 10 nA |
| 描述与应用 |
特性 ?低电容单向ESD保护二极管 ?高达26 kVESD保护 ?低电容二极管：Cd=25 PF ?IEC61000-4-2第4级（ESD） ?低钳位电压：VCL= 12 V ?AEC-Q101资格 ?极低的漏电流：IRM= 10 nA |
