SN74LVC1G126DBVR C26 的参数 |
| 类型
Type |
非反相 Non-Inverting |
| 元件数
Number of Elements |
1 |
| 每元件位数
Number of Bits per Element |
1 |
| 电源电压
Voltage - Supply |
1.65 V ~ 5.5 V |
| 输出高电平，低电平电流
Current - Output High, Low |
32mA，32mA |
| Description & Applications |
This single bus buffer gate WITH 3-STATE OUTPUT is designed for 1.65-V to 5.5-V VCC operation. single line driver with a 3-state output. The output is disabled when the output-enable (OE) input is low. The Ioff circuitry disables the outputs,preventing damaging current backflow through the device when it is powered down. |
| 描述与应用 |
这种单总线缓冲栅极具有三态输出设计用于1.65-V到5.5 V的VCC操作。 单线路驱动器与3态输出。当输出使能（OE）输入为低电平时，输出被禁止。 IOFF电路禁止输出，防止损坏电流回流通过设备时，断电 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |

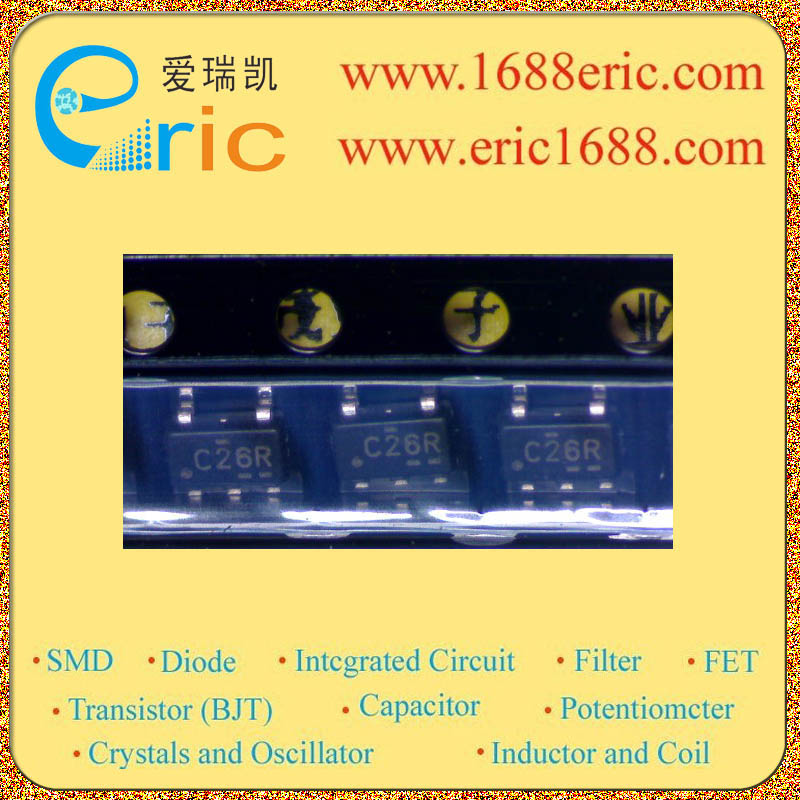

| SN74LVC1G126DBVR |
C26 |
TEXAS |
05+12+ROHS1500 |
SOT-153/SOT23-5/SC-74A |
4550 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-缓存与线路驱动器Buffer/Line Driver |
查看 |
|
|
|
