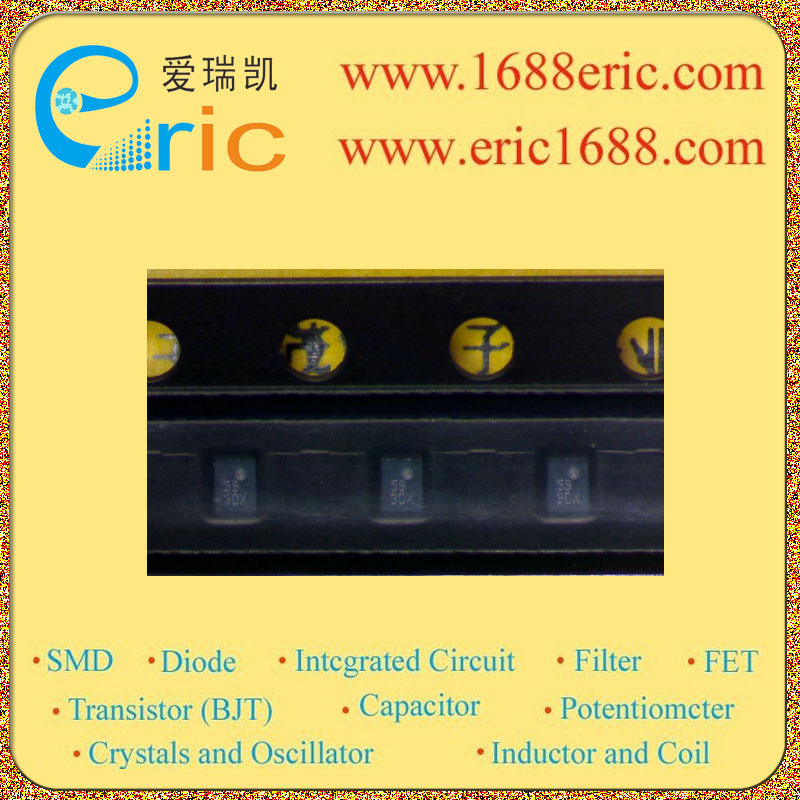

IP4059CX5/LF 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
3V |
| 反向击穿电压VBR
Breakdown Voltage |
6V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
|
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
|
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Features and benefits ?Integrated USB 2.0 and USB OTG ESD protection to ?Pb-free, RoHS compliant and free of halogen and antimony (Dark Green compliant) ?4 ultra-low input capacity rail-to-rail ESD protection diodes with Cd = 3.0 pF ?Integrated ESD protection withstanding ?8 kV contact discharge and ?15 kV air discharge ?WLCSP with 0.5 mm pitch |
| 描述与应用 |
特性与优点 ?集成的USB 2.0和USB OTG ESD保护 ?无铅，符合RoHS标准，不含卤素和锑（墨绿色兼容） ?4超低输入容量轨至轨ESD保护二极管，CD =3.0 pF的 ?集成的ESD保护承受?8 kV接触放电和?15 kV空气放电 ?0.5 mm间距WLCSP |
