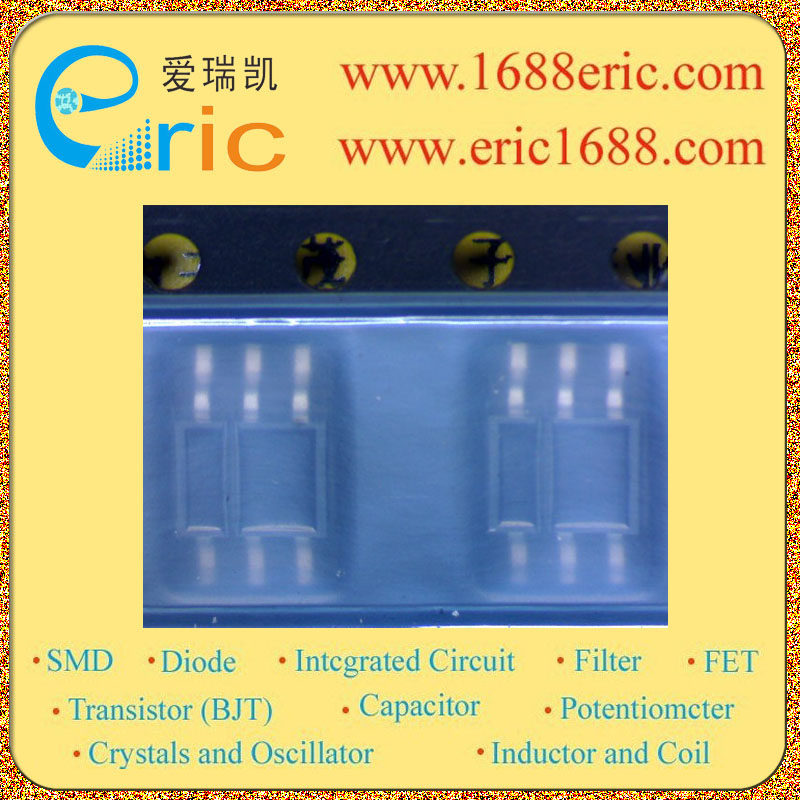

SFH9202 的参数 |
感应方法
Sensing Method |
反射 Reflective |
输出配置
Output Type |
光电晶体管 Phototransistor |
电流 - DC 正向 (If)
Current - DC Forward (If) |
50mA |
电流 - 集电极 (Ic)(最大值)
Current - Collector (Ic) (Max) |
10mA |
电压 - 集射极击穿(最大值)
Voltage - Collector Emitter Breakdown (Max)Voltage - Collector Emitter Breakdown (Max) |
30V |
响应时间
Response Time |
30μs,40μs |
Description & Applications |
Features ? Reflex lights chranke Reflective Interrupter Lead (Pb) Free Product - RoHS Compliant ? Optimal operating distance 1 mm to 5 mm ? IR-GaAs-emitter in combination with a Silicon NPN phototransistor ? Daylight cut-off filter ? Low saturation voltage ? Emitter and detector electrically isolated ? Preconditioning acc. to JEDEC Level 4 Applications ? Position reporting ? End position switch ? Speed monitoring ? Motion transmitter |
描述与应用 |
特点 ?反射灯chranke反光灭弧铅(Pb)免费产品 - RoHS合规性 ?最佳工作距离为1毫米至5毫米 ?砷化镓红外发射器结合一个NPN硅光电晶体管 ?日光截止滤波器 ?低饱和电压 ?发射器和检测器电气隔离 ?预处理ACC。 JEDEC4级 应用 ?位置报告 ?结束位置开关 ?速度监控 ?准变送器 |
