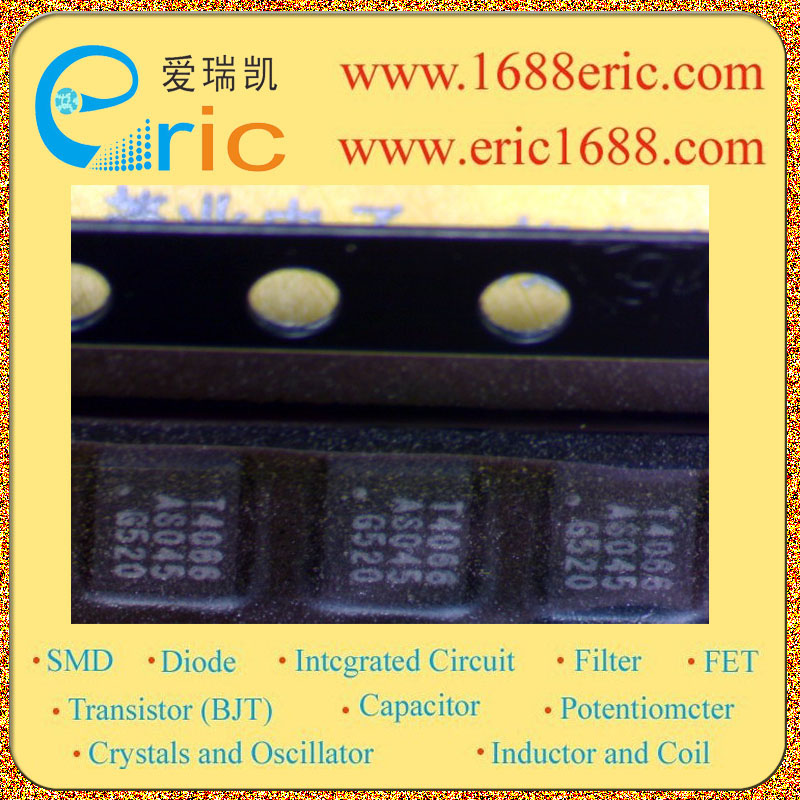

74HCT4066BQ T4066 的参数 |
| 开关配置
Circuit |
4*单刀单掷 4*SPST |
| 导通电阻
On-State Resistance |
35Ω/Ohm |
| 电源电压
Voltage - Supply |
4.5V~5.5V |
| Description & Applications |
16-channel analog multiplexer/demultiplexer The 74HC4066; 74HCT4066 is a high-speed Si-gate CMOS device and is pin compatible with the HEF4066B. The device is specified in compliance with JEDEC standard no. 7A. The 74HC4066; 74HCT4066 has four independent analog switches. Each switch has two input/output pins (nY, nZ) and an active HIGH enable input (nE). When nE is low the corresponding analog switch is turned off. The 74HC4066; 74HCT4066 is pin compatible with the 74HC4016; 74HCT4016 but exhibit a much lower ON-resistance. In addition, the ON-resistance is relatively constant over the full input signal range.Input levels nE inputs: ? For 74HC4066: CMOS level ? For 74HCT4066: TTL level ? ESD protection: ? HBM JESD22-A114F exceeds 2000 V ? MM JESD22-A115-A exceeds 200 V ? Multiple package options Speci?ed from ?40 °C to +85 °C and ?40 °C to +125 °C |
| 描述与应用 |
16通道模拟多路复用器/多路解复用器 74HCT4066是一个高速硅栅CMOS设备和HEF4066B引脚兼容 。该设备符合JEDEC标准规定。 74HCT4066有四个独立的模拟开关。每个开关有两个 输入/输出引脚（NY，NZ）和主动高启动输入（NE）。当NE是低时 相应的模拟开关是关闭的。 74HCT4066和74HC4016引脚兼容;但74HCT4016 的导通电阻低得多。此外，导通电阻在整个输入信号范围是相对恒定的 。输入NE投入： ?对于74HC4066：CMOS电平 ?对于74HCT4066：TTL电平 ?ESD保护： ?HBM JESD22-A114F超过2000 V ?MM JESD22-A115-A超过200 V ?多种封装选项 从-40°C至+85°C和-40°C至+125°C |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| 74HCT4066BQ |
T4066 |
NXP/PHILIPS |
05NOPB |
TSSOP14 |
51000 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| 74HCT4066BQ |
T4066 |
NXP/PHILIPS |
05NOPB |
DHVQFN14 |
0 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
|
|
|
