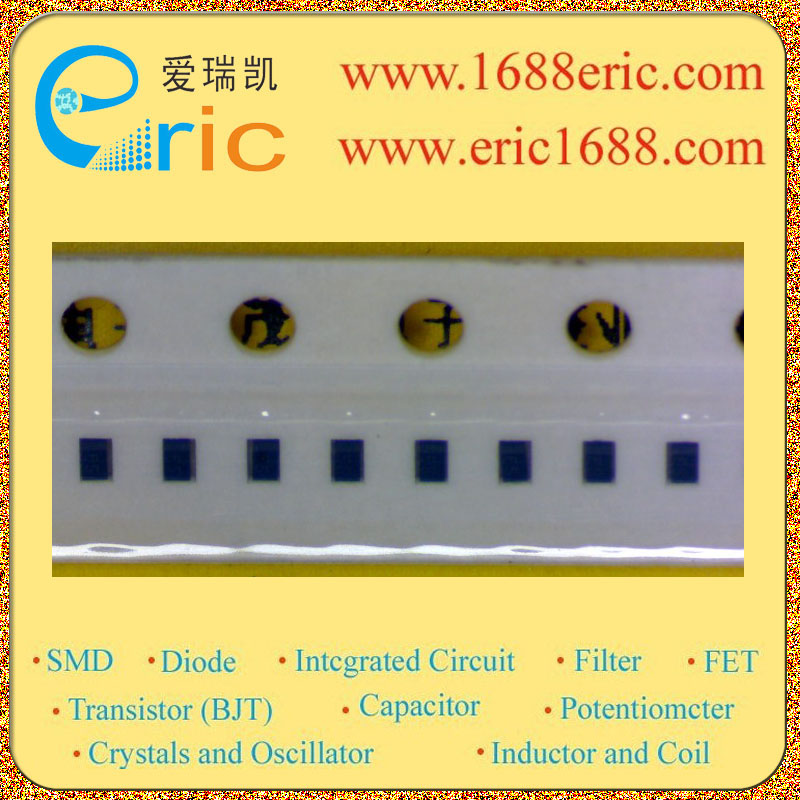

VS909SL-TR-H E5 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5.3V |
| 反向击穿电压VBR
Breakdown Voltage |
6V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
|
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
3A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
FEATURES ?low capacitance TVS diode ?general purpose protection device ?very low capacitance 0.4pf typ ?ESD/transient Protection of high-speed data lines in applications ?smallest form factor of 1.0x0.6x0.39mm ?halogen free compliance |
| 描述与应用 |
特点 ?低电容TVS二极管 ?通用保护装置 ?非常低的电容0.4PF（典型值） ?在应用中的高速数据线ESD/瞬态保护 ?最小的外形尺寸1.0x0.6x0.39mm ?无卤符合 |
