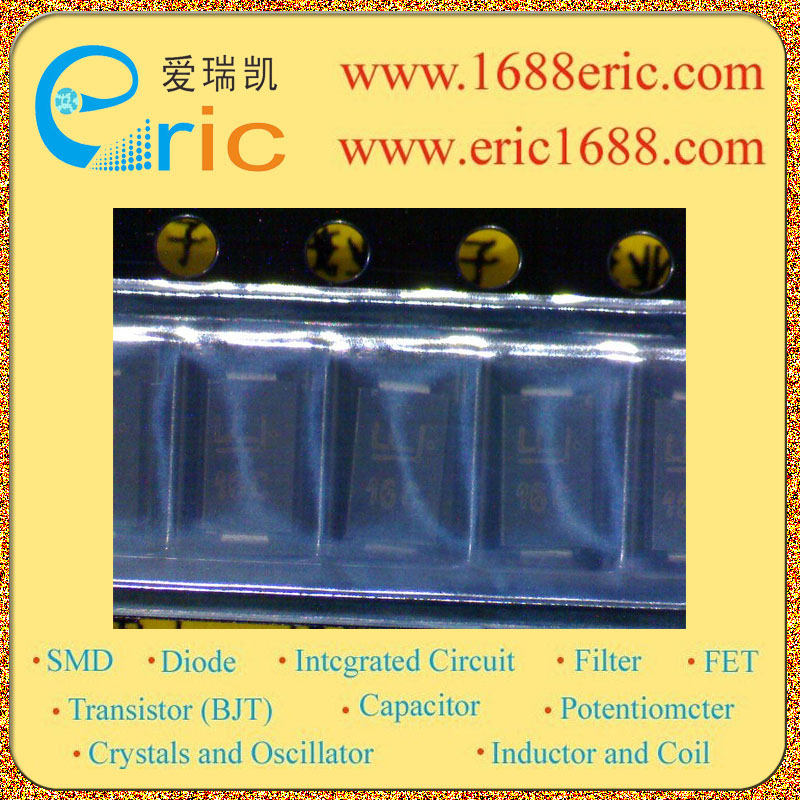

P4SMA16CA 16C 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
13.6V |
| 反向击穿电压VBR
Breakdown Voltage |
16V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
400W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
18.2A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
Features ?Silicon Avalanche Diodes ? RoHS compliant ? For surface mounted applications in order to optimize board space ? Low profile package ? Built-in strain relief ? Glass passivated junction ? Low Inductance ? Excellent clamping capability ? Repetition Rate (duty cycle):0.01% ? Fast response time: typically less than 1.0ps from 0 Volts to V(BR) for unidirectional types ? Typical IR less than 1μA above 10V ? High temperature soldering: 250?C/10 seconds at terminals |
| 描述与应用 |
特性 ?硅雪崩二极管 ?符合RoHS标准 ?对于表面安装的应用RoHS，以优化电路板空间 ?薄型包装 ?内置应变救灾 ?玻璃钝化结 ?低电感 ?出色的钳位能力 ?重复率（占空比）：0.01％ ?快速响应时间：通常小于1.0PS从0伏特至 V（BR）单向类型 ?典型的IR小于1μA大于10V ?高温焊接：250?C/10秒钟在终端 |
