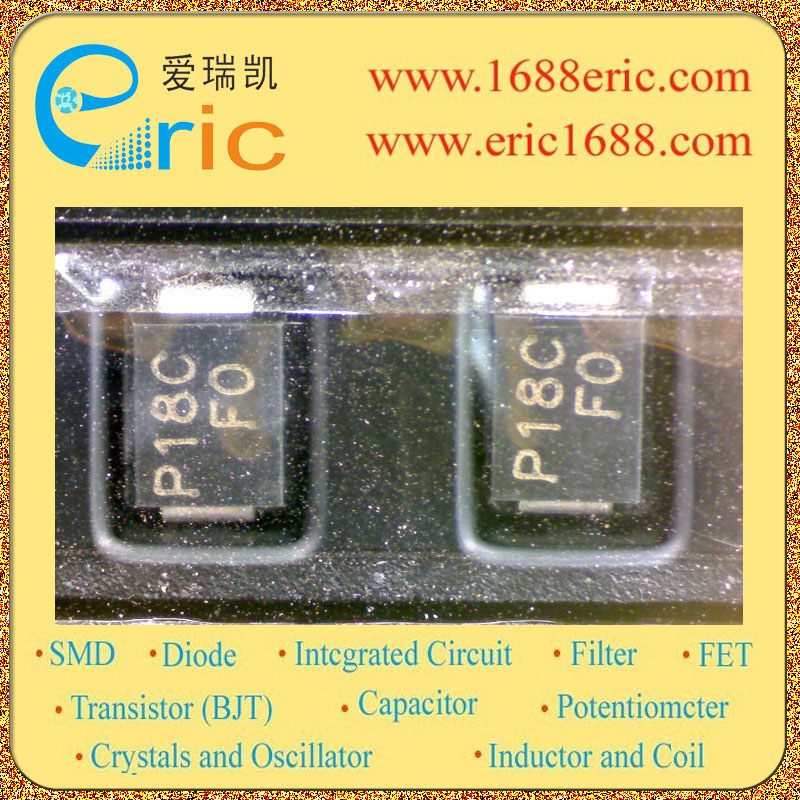

P1800SCRP P18C 的参数 |
| 击穿电压VBO
Breakover voltage |
|
| 断态重复峰值电压VDRM
Repetitive peak off-state voltage |
170V |
| 峰值通态电压VTM
On-state voltage |
4V |
| 峰值脉冲电流(8 x 20us)
Current - Peak Pulse (8 x 20μs) |
150A |
| 峰值脉冲电流(10 x 1000us)
Current - Peak Pulse (10 x 1000μs) |
45A |
| 保持电流IH
Holding current |
150mA |
| Description & Applications |
DO-214AA SIDACtor solid state protection devices protect telecommunications equipment such as modems, line cards, fax machines, and other CPE. SIDACtor devices are used to enable equipment to meet various regulatory requirements including GR 1089, ITU K.20, K.21 and K.45, IEC 60950, UL 60950, and TIA/EIA-IS-968 |
| 描述与应用 |
固态保护设备可以保护电信设备 如调制解调器，线卡，传真机，以及其他CPE。 SIDACtor装置用于使能设备，以满足不同的监管要求 包括GR 1089 ITU K.20，K.21和K.45，IEC60950，UL60950，TIA/EIA-IS-968的 |
