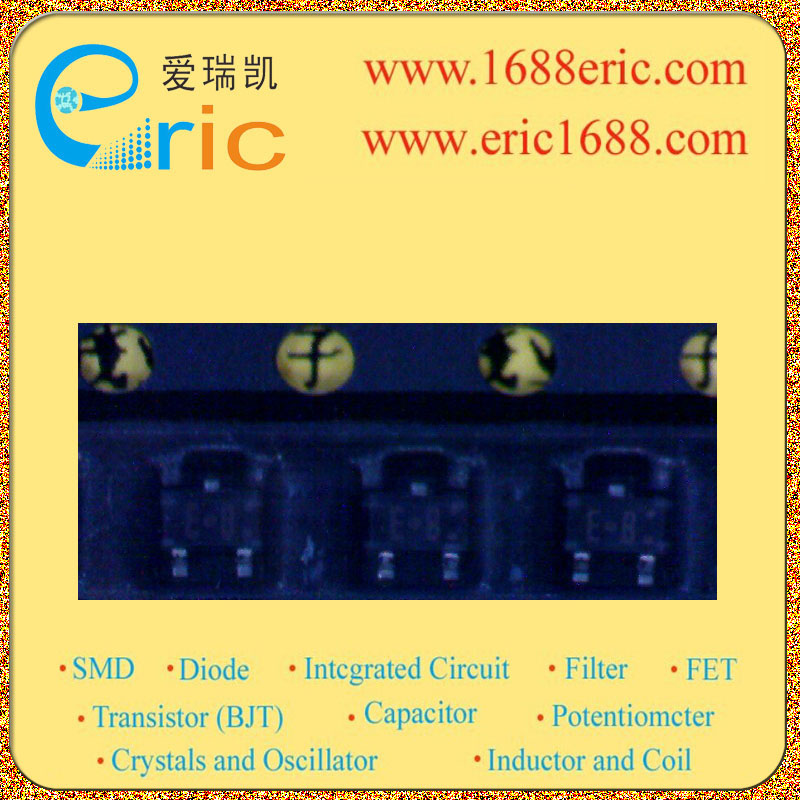

2SA1532GBL EB 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-30V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
?20V |
| 集电极连续输出电流IC
Collector Current(IC) |
-30mA |
| 截止频率fT
Transtion Frequency(fT) |
300MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
70 ~ 140 |
| 管压降VCE（sat）
Collector-Emitter SaturationVoltage |
-100mV/-0.1V |
| 耗散功率Pc
PoWer Dissipation |
150mW/0.15W |
| Description & Applications |
Silicon PNP epitaxial planer type For high-frequency amplification Complementary to 2SC3930 Features High transition frequency fT. S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. |
| 描述与应用 |
硅PNP外延刨床类型 对于高频放大 互补2SC3930 特点 高转换频率FT |
