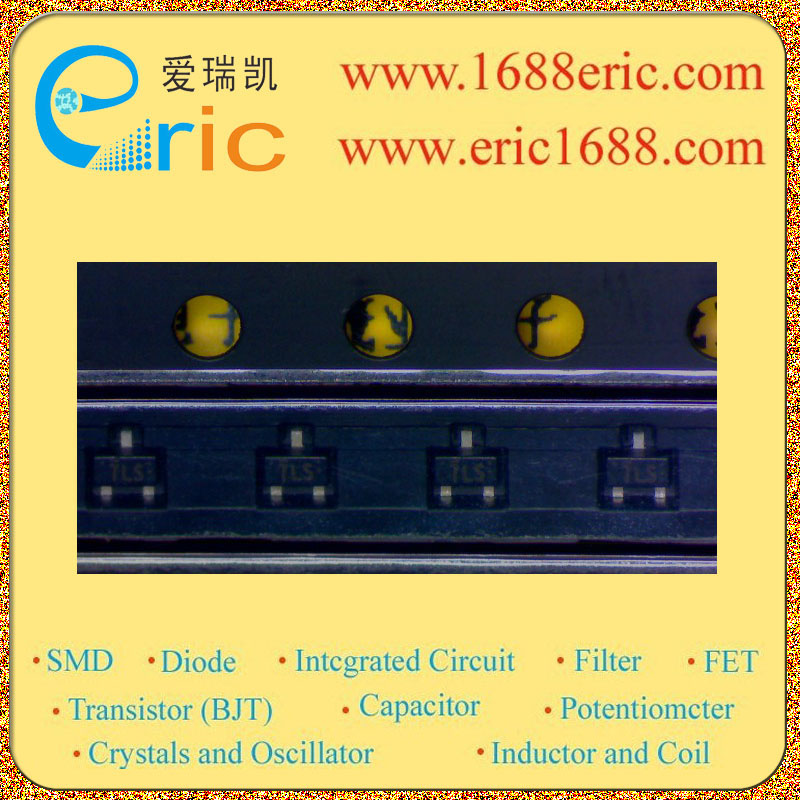

2SA2174GSL 7LS 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-60V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
?50V |
| 集电极连续输出电流IC
Collector Current(IC) |
?100mA/-0.1A |
| 截止频率fT
Transtion Frequency(fT) |
80MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
160~460 |
| 管压降VCE（sat）
Collector-Emitter SaturationVoltage |
?500mV/-0.5V |
| 耗散功率Pc
PoWer Dissipation |
125mW/0.125W |
| Description & Applications |
PNP Silicon epitaxial planar type For general ampli?cation Complementary to 2SC6054G Features High forward current transfer ratio hFE SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing. |
| 描述与应用 |
PNP硅外延平面型 对于一般放大 互补型2SC6054G 特点 高正向电流传输比HFE SS-迷你型包装，允许缩小设备规模和通过自动插入磁带包装。 |
