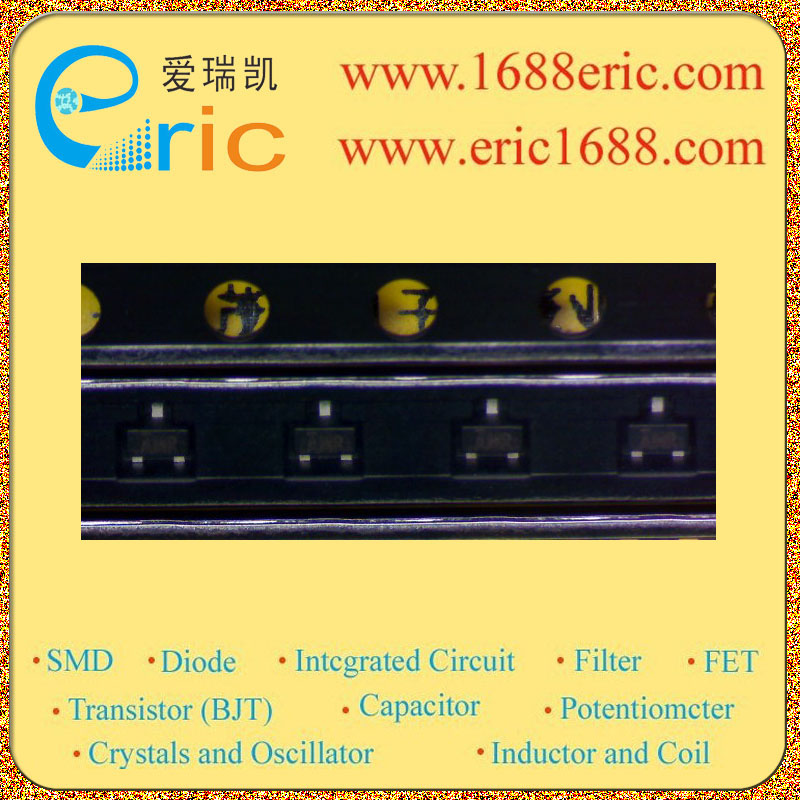

2SC4656GRL AMR 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V |
| 集电极连续输出电流IC
Collector Current(IC) |
50mA |
| 截止频率fT
Transtion Frequency(fT) |
250MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
200~500 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
100mV/0.1V |
| 耗散功率Pc
Power Dissipation |
125mW/0.125W |
| Description & Applications |
Features ?Silicon PNP epitaxial planer type ?For high-frequency amplification Complementary to 2SC4656 ?High transition frequency fT. ?Small collector output capacitance Cob ?SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. |
| 描述与应用 |
特点 ?PNP硅外延平面型 ?对于高频放大互补2SC4656 ?高转换频率fT。 ?小集电极输出电容芯 ?SS-迷你型包装，让瘦身的设备通过自动插入带包装盒包装。 |
