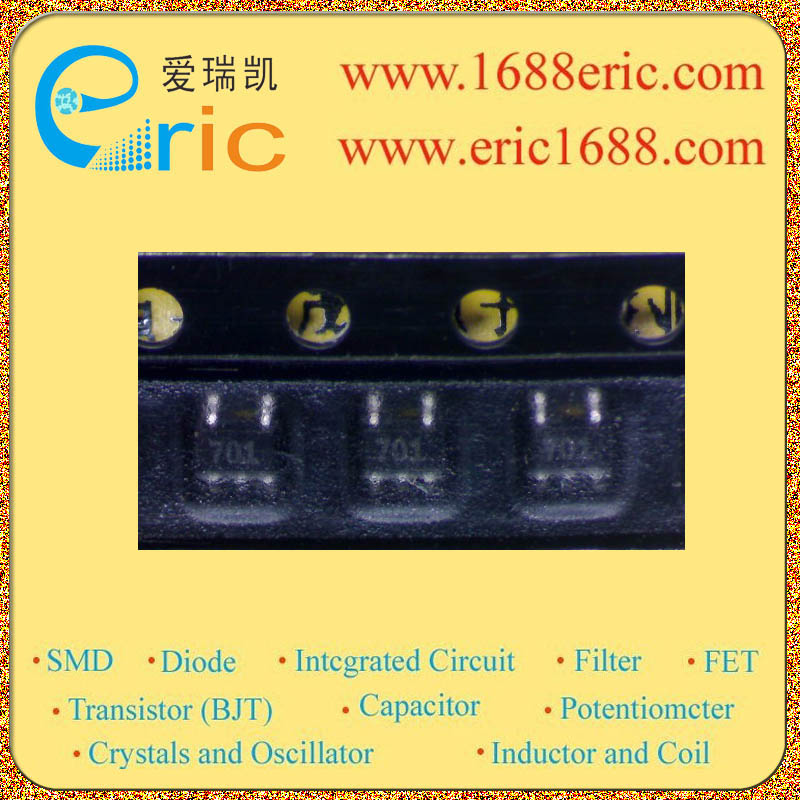

STF701.TC 701 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5V |
| 反向击穿电压VBR
Breakdown Voltage |
6V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
|
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
|
| 额定耗散功率Pd
Power dissipation |
0.1W/100mW |
| Description & Applications |
Features ? T-FILTER WITH TVS DIODE ARRAY For EMI Filtering and ESD Protection ? Bidirectional EMI/RFI filtering and line termination with integrated ESD protection ? ESD protection to IEC 61000-4-2 (ESD) LEVEL 4 ? Filtering and ESD protection for two data lines ? Low TVS operating voltage (5V) ? Low leakage current |
| 描述与应用 |
特点 ?T型过滤器EMI滤波与ESD保护二极管TVS阵列 ?双向EMI / RFI滤波和线路终端，集成ESD保护 ?ESD保护IEC 61000-4-2（ESD）4级 ?两个数据线滤波和ESD保护 ?低TVS工作电压（5V） ?低漏电流 |
