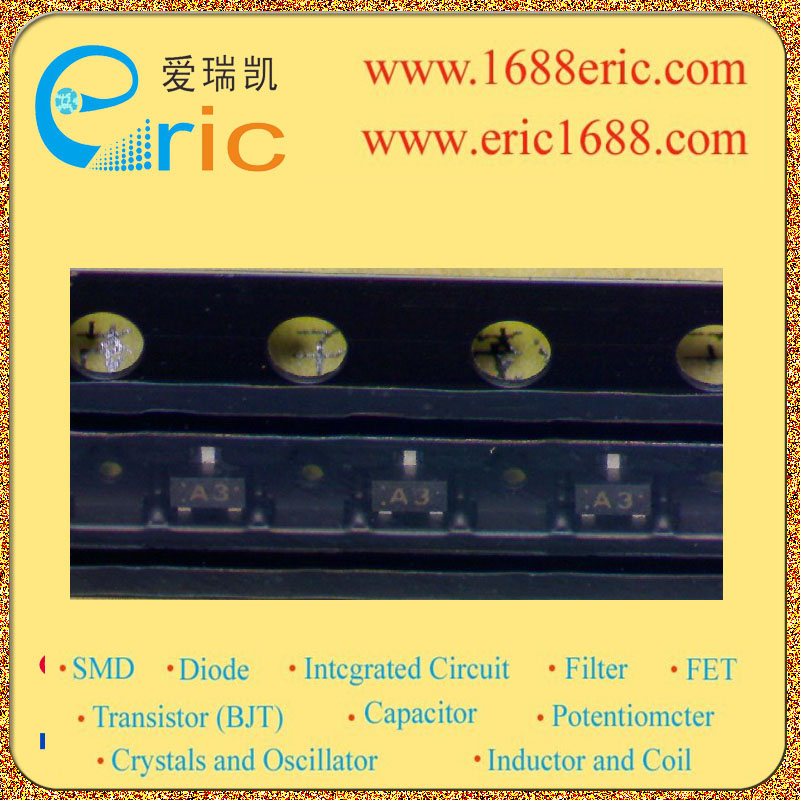

1SS360F A3 的参数 |
反向电压Vr
Reverse Voltage |
80V |
平均整流电流Io
Average Rectified Current |
100mA/0.1A |
最大正向压降VF
Forward Voltage(Vf) |
1.2V |
反向恢复时间Trr
Reverse Recovery Time |
4.0NS |
最大耗散功率Pd
Power Dissipation |
100mW/0.1W |
Description & Applications |
FEATURES ? TOSHIBA Diode Silicon EpitAxiAl PlAnAr Type ? UltrA High Speed Switching ApplicAtion ? The 1SS360F consists of two high-speed switching diodes with common Anodes, ? SmAll pAckAge : 1608 FlAt leAd ? Excellent in forwArd current And forwArd VoltAge chArActeristics : VF (3) = 0.92V (typ.) ? FAst reVerse recoVery time : trr = 1.6ns (typ.) ? SmAll totAl cApAcitAnce : CT = 2.2pF (typ.) |
描述与应用 |
特点 ?东芝二极管硅外延平面型 ?超高速开关应用 ?1SS360F由两个高速开关二极管共阳极, ?小包装:1608扁平引脚 ?优异的正向电流和正向电压 ?特点:VF(3)=0.92V(典型值) ?快速反向恢复时间:TRR =1.6ns(典型值) ?小总电容:CT=换成2.2pF(典型值) |
