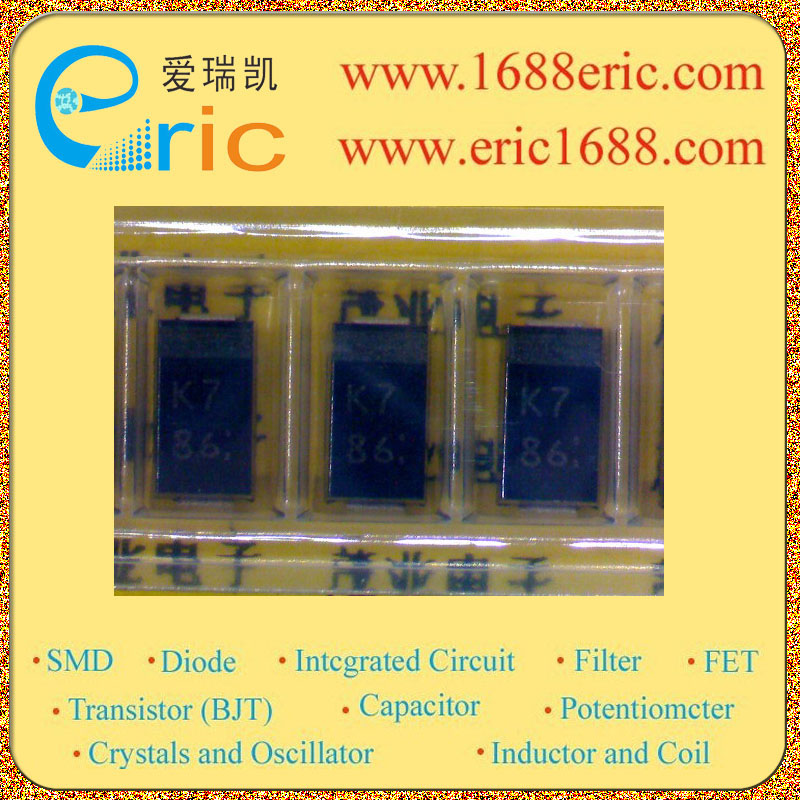

D1FK70 K7 的参数 |
| 反向电压Vr
Reverse Voltage |
700V |
| 平均整流电流Io
AverAge Rectified Current |
0.6A/600mA |
| 最大正向电压降VF
Forward Voltage(Vf) |
1.3V |
| 反向恢复时间Trr
Reverse Recovery Time |
400nS |
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
Super fast recovery diode Repetitive peak reverse voltage: VRRM = 600 V ? Average forward current: IF (AV) = 0.7 A ? Low forward voltage: VFM = 2.0 V (max.) ? Very fast reverse-recovery time: trr = 100 ns (max.) ? Suitable for compact assembly due to its small surface-mount package, the “S?FLATTM” (Toshiba package name) |
| 描述与应用 |
超快速恢复二极管 反向重复峰值电压VRRM=600 V ?平均正向电流IF（AV）=0.7 A ?低正向电压：VFM=2.0 V（最大） ?非常快的反向恢复时间：TRR =100纳秒（最大值） ?适用于小型汇编由于小型表面贴装包 |
