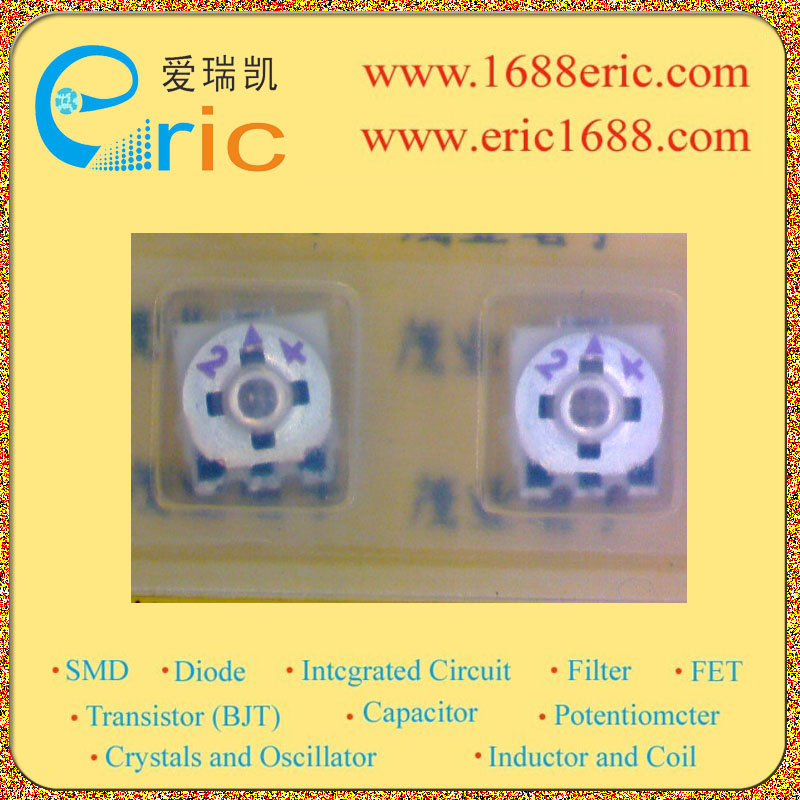

EVM1USX30B24 24 的参数 |
| 电阻值
Resistance |
20KΩ/Ohm |
| 额定功率
Power |
0.2w,1/5w |
| 容差
Tolerance |
±25% |
| 温度系数
Temperature Coefficient |
±250 ppm/°C |
| 圈数
Number of Turns |
单圈 Single |
| 调节类型
Adjustment Type |
顶部和底部调节 Top and Bottom Adjustment |
| 端子类型
Termination Style |
J引线 J Lead |
| Description & Applications |
● 4 mm Square SMT Trimmer Potentiometers (Cermet, Open Frame Type) ■ Features ● 4 mm square series for refl ow soldering ● Both sides adjust type (EVM1U) ● High reliability realized by cermet element ● Ex cel lent mountability ● Conforms to JIS C5260-1:1999 ■ Recommended Applications ● Audio/visual, offi ce, and communication equipment ● General electronic equipment |
| 描述与应用 |
●4mm贴片微调电位器（陶瓷，开架式） ■特点 ●4mm的回流焊接系列 ●双方调整型（EVM1U） ●高可靠性实现了金属陶瓷元件 ●EX CEL借给安装性 ●符合JIS电子设备用电位计-1：1999 ■推荐应用 ●音频/视觉，OFFI CE和通信设备 ●一般电子设备 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| EVM1USX30B23 |
23 |
Panasonic |
05+ |
4X4-2K |
83000 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| EVM1USX30B24 |
24 |
Panasonic |
05+ |
4x4-20K |
3000 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| EVM1USX30B25 |
25 |
Panasonic |
14+rohs |
4X4-200K |
0 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| EVM1USX30B23 |
23 |
Panasonic |
05+ |
4X4-2K |
6000 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| EVM1USX30B24 |
24 |
Panasonic |
05+ |
4X4-20K |
1000 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
| EVM1USX30B22 |
22 |
Panasonic |
09+NOPB |
4X4-200R |
2000 |
电阻Resistor-可调电阻Trimmer Potentiometer |
查看 |
|
|
|
