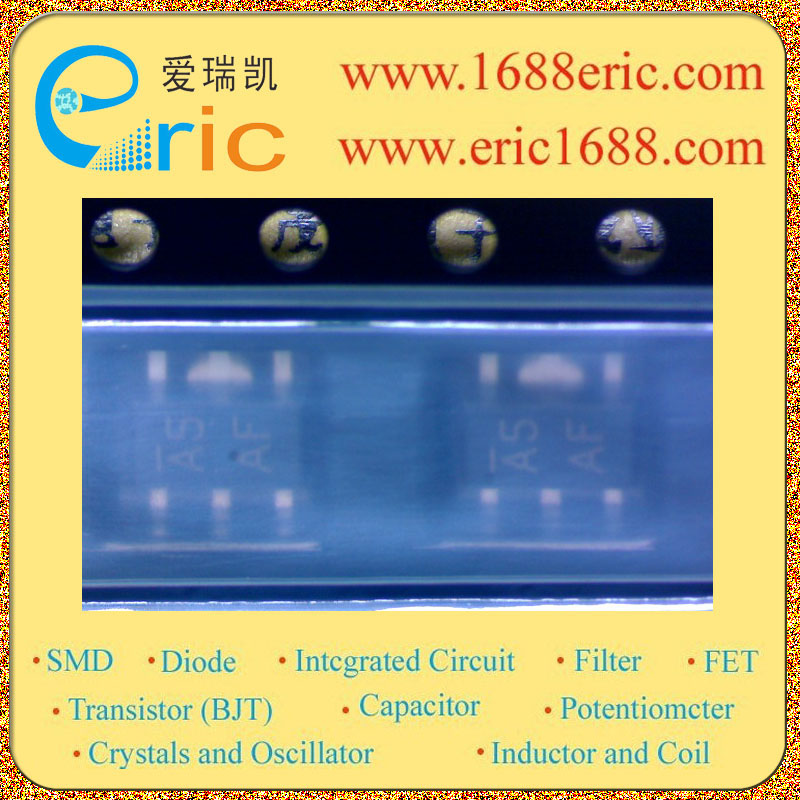

XC6371C502PR A5A 的参数 |
| 控制方式
MODE |
PWM |
| 输入电压VIN
Input Voltage |
0.9?10V |
| 输出电压VOUT
Output Voltage |
5V |
| 输出电流IOUT
Output Current |
50mA |
| 震荡频率FOSC
Oscillation Frequency |
100KHz |
| 内置FET
Built-in FET |
|
| Description & Applications |
PWM Controlled Step‐Up DC/DC ?Operating (start-up) voltage range: 0.9V~10V ?Output voltage range : 2.0V~7.0V in 0.1V increments ?Highly accurate : Set-up voltage ±2.5% ?Oscillator frequency : 50kHz, 100kHz, 180khz (±15%) selectable ?Maximum output currents (Tr built-in) : Typ.100mA @ VIN=3.0, ?VOUT=5.0V .....Note(1) ?Highly efficient (Tr built-in) : Typ.85% @ VIN=3.0, VOUT=5.0V .....Note(1) ?Built-in switching transistor type and an external Tr type are available. ?Five-lead packaged units offer either Chip Enable or ?independent VOUT pin option. ?Phase compensation and soft start-up circuits built-in Small |
| 描述与应用 |
PWM控制的升压型DC / DC控制器/转换器 ?工作（启动）电压范围：0.9V?10V ?输出电压范围：2.0V?7.0V，0.1V增量 ?高精度：设定电压±2.5％ ?振荡器频率：50kHz的100kHz时，180KHZ（±15％）可选 ?最大输出电流（TR内置） Typ.100mA@ VIN= 3.0， ?VOUT= 5.0V.....注（1） ?高效（TR内置） ：Typ.85％VIN=3.0，VOUT= 5.0V.....注（1） ?内置开关晶体管的类型和外部TR型可供选择。 ?五导联包装单位提供两种芯片启用或 ?独立VOUT引脚选项。 ?相位补偿和软启动电路内置小 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| XC6371C271PR |
A27 |
TOREX |
02+ |
SOT89-5 |
900 |
电源管理ICPower Management IC/PMIC-DC/DC升压转换器DC/DC Step-Up Converter |
查看 |
| XC6371C281PR |
A28 |
TOREX |
05+ |
SOT89-5 |
700 |
电源管理ICPower Management IC/PMIC-DC/DC升压转换器DC/DC Step-Up Converter |
查看 |
| XC6371C301PR |
A30 |
TOREX |
05+ |
SOT89-5 |
500 |
电源管理ICPower Management IC/PMIC-DC/DC升压转换器DC/DC Step-Up Converter |
查看 |
| XC6371C401PR |
A4 |
TOREX |
04+ |
SOT89-5 |
900 |
电源管理ICPower Management IC/PMIC-DC/DC升压转换器DC/DC Step-Up Converter |
查看 |
| XC6371C402PR |
A4A |
TOREX |
05+ |
SOT89-5 |
0 |
电源管理ICPower Management IC/PMIC-DC/DC升压转换器DC/DC Step-Up Converter |
查看 |
| XC6371C402PR |
A4A |
TOREX |
02+ |
SOT89-5 |
1400 |
电源管理ICPower Management IC/PMIC-DC/DC升压转换器DC/DC Step-Up Converter |
查看 |
| XC6371C501PR |
15 |
TOREX |
05+ |
SOT89-5 |
0 |
电源管理ICPower Management IC/PMIC-DC/DC升压转换器DC/DC Step-Up Converter |
查看 |
| XC6371C602PR |
A6A |
TOREX |
04+ |
SOT89-5 |
500 |
电源管理ICPower Management IC/PMIC-DC/DC升压转换器DC/DC Step-Up Converter |
查看 |
| XC6371C502PR |
A5A |
TOREX |
09NOPB24KM |
SOT89-5 |
25700 |
电源管理ICPower Management IC/PMIC-DC/DC升压转换器DC/DC Step-Up Converter |
查看 |
|
|
|
