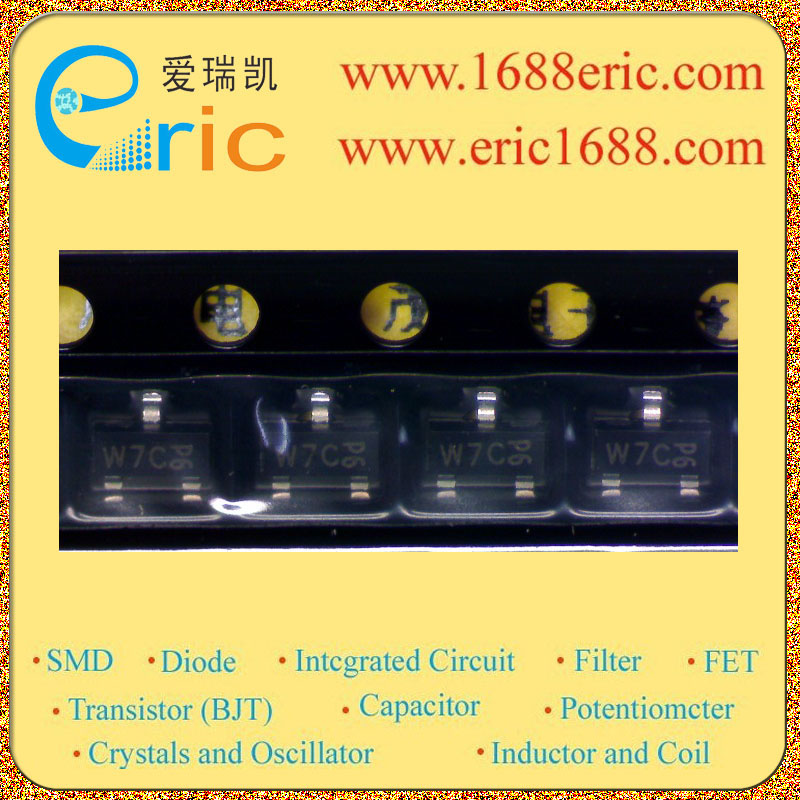

PESD12VS2UAT W7C 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
12V |
| 反向击穿电压VBR
Breakdown Voltage |
14.7V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
180W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
5A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
FEATURES ? Double ESD protection diodes in SOT23 package ? Unidirectional ESD protection of up to two lines ? Common-cathode configuration ? Max. peak pulse power: Ppp = 330 W at tp = 8/20 μs ? Low clamping voltage: V(CL)R = 20 V at Ipp = 18 A ? Ultra-low reverse leakage current: IRM < 700 nA ? ESD protection > 30 kV ? IEC 61000-4-2; level 4 (ESD) ? IEC 61000-4-5 (surge); Ipp = 18 A at tp = 8/20 μs. |
| 描述与应用 |
特性 ?双SOT23封装ESD保护二极管 ?单向ESD保护最多两行 ?通用阴极配置 ?最大峰值脉冲功率：Ppp=330 W在tp= 8/20μs ?低钳位电压：V（CL）R =20 V IPP =18? ?超低反向漏电流：IRM<700 nA的 ?ESD保护>30千伏 ?IEC61000-4-2第4级（ESD） ?IEC61000-4-5（浪涌），IPP =18 A在tp= 8/20μs |
