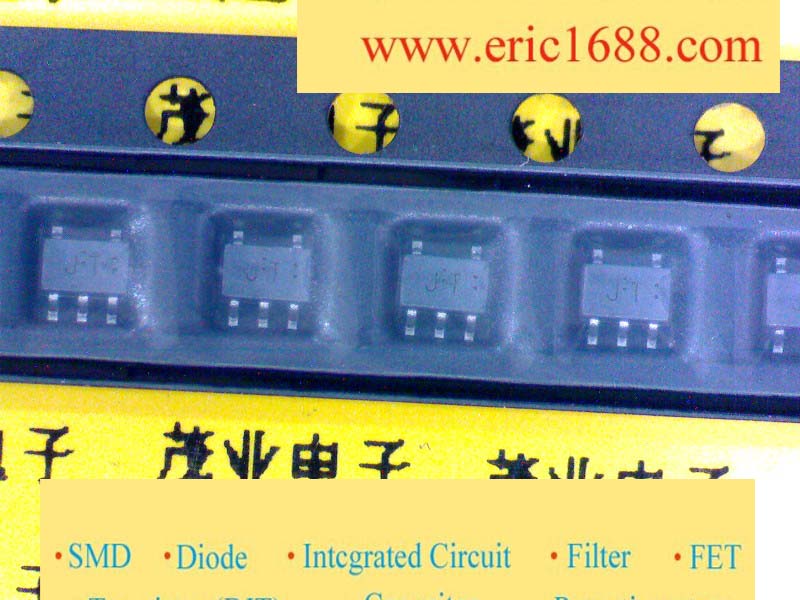

TC7SBD385AFU JT 的参数 |
| 类型
Type |
总线开关 Bus Switch |
| 电路
Circuit |
|
| 独立电路
Independent Circuits |
|
| 输出高，低电流
Current - Output High, Low |
|
| 单电源
Voltage Supply Source |
单电源 Single Supply |
| 电源电压
Voltage - Supply |
4.5 V ~ 5.5 V |
| Description & Applications |
The TC7SBD385AFU provides single bit of high-speed TTL-compatible switching. The low on resistance of the switch allows connections to be made with minimal propagation delay. The device is organized as just 1-bit low-impedance switch with output-enable (OE) input. When OE is high, the switch is on and data can flow from port A to port B, or vice versa. When OE is low, the switch is open and a high-impedance state exists between the two ports.The internal diode which adds to power supply line is enable to realize the shift of signal level from 5 V to 3.3 V. All inputs are equipped with protection circuits against static discharge. Operating voltage: VCC = 4.5~5.5 V High speed operation: tpd = 0.25 ns (max) Low on resistance: RON = 5 ? (typ.) ESD performance: Machine model > ±200 V Human body model > ±2000 V TTL level input (control input) Package: USV |
| 描述与应用 |
TC7SB385AFU提供单一位的高速TTL兼容的交换开关。低导通电阻的开关允许以最小的传播延迟连接。该设备被组织为仅有1位低阻抗开关，有着输出使能（OE）输入。当OE低，开关和数据流可以从端口A端口B，反之亦然。当OE高，开关打开和高阻抗状态之间存在着两个端口。增加了电源线的内部二极管，实现信号电平从5 V到3.3 V的移位。所有输入都配有保护电路防止静电放电。 工作电压：VCC= 4.5?5.5 V 高速运行：TPD =0.25 ns（最大） 低导通电阻RON= 5Ω（典型值） ESD性能：机器型号>±200 V 人体模式>±2000 V TTL电平输入（控制输入） 包装：USV |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| TC7SB384FU |
JF |
TOSHIBA |
05NOPB43RM+200 |
SOT-353/USV |
297200 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SB384FU |
JF |
TOSHIBA |
05+9Knopb |
SOT-353/USV |
15000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SB385FU |
JK |
TOSHIBA |
12+ROHS |
SOT-353/USV |
4300 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SB66FU |
J9 |
TOSHIBA |
04+ROHS |
SOT-353/SC70-5/USV |
9000 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| TC7SB66FU |
J9 |
TOSHIBA |
11+ROHS |
SOT-353/SC70-5/USV |
132100 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| TC7SBD385FU |
JL |
TOSHIBA |
05+ |
SOT-353/USV |
3000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SBL384AFU |
JN |
TOSHIBA |
10+ROHS |
SOT-353/USV |
72000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SBL384AFU |
JN |
TOSHIBA |
10+ROHS |
SOT-353/USV |
27000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SBD385AFU |
JT |
TOSHIBA |
0926+ROHS |
SOT-353/USV |
3000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SB3157CFU |
JW |
TOSHIBA |
11+NOPB |
SOT-363/SC70-6/US6 |
2800 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-解码器、多路复用器、信号开关Signal Switch, Multiplexer, Decoder |
查看 |
| TC7SB3157CFU |
JW |
TOSHIBA |
11+rohs |
SOT-363 |
6000 |
集成电路ICIntegrated Circuit（IC）-其它Other |
查看 |
|
|
|
