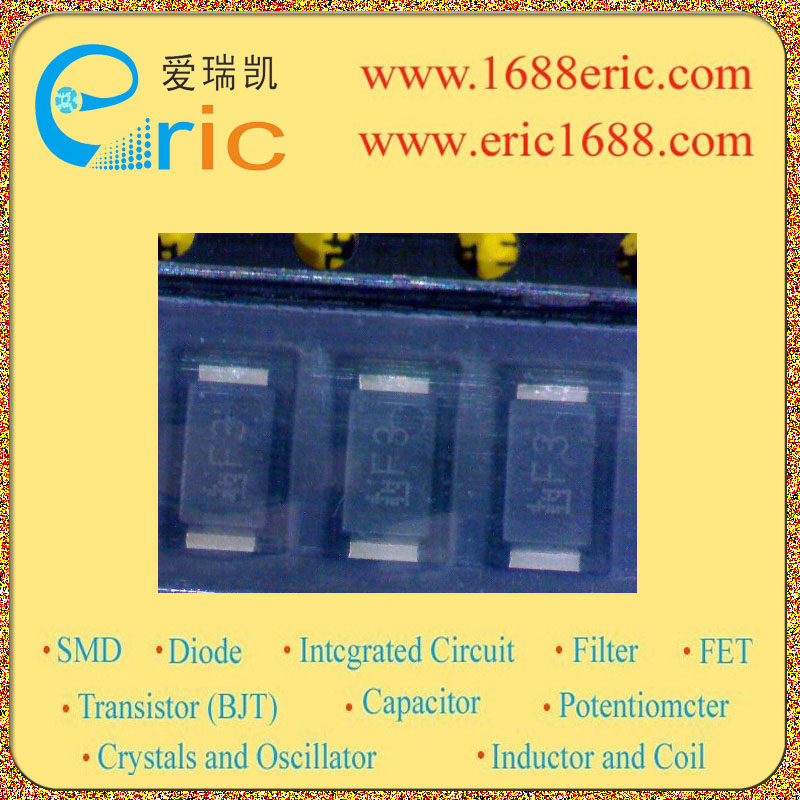

CMF03 f3 的参数 |
| 反向电压Vr
Reverse Voltage |
900V |
| 平均整流电流Io
AverAge Rectified Current |
0.5A/500mA |
| 最大正向电压降VF
Forward Voltage(Vf) |
2.5V |
| 反向恢复时间Trr
Reverse Recovery Time |
100nS |
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
Fast Recovery Diode Switching Mode Power Supply Applications DC/DC Converter Applications ? Repetitive peak reverse voltage: VRRM = 900 V ? Average forward current: IF (AV) = 0.5 A ? Forward voltage: VFM = 2.5 V (max) ? Very fast reverse-recovery time: trr = 100 ns (max.) ? Suitable for compact assembly due to small surface-mount package “M?FLATTM” (Toshiba package name) |
| 描述与应用 |
快恢复二极管 开关模式电源应用 DC/ DC转换器应用 反向重复峰值电压VRRM=900 V ?平均正向电流IF（AV）=0.5 A ?正向电压：VFM=2.5 V（最大值） ?非常快的反向恢复时间：TRR =100纳秒（最大值） |
