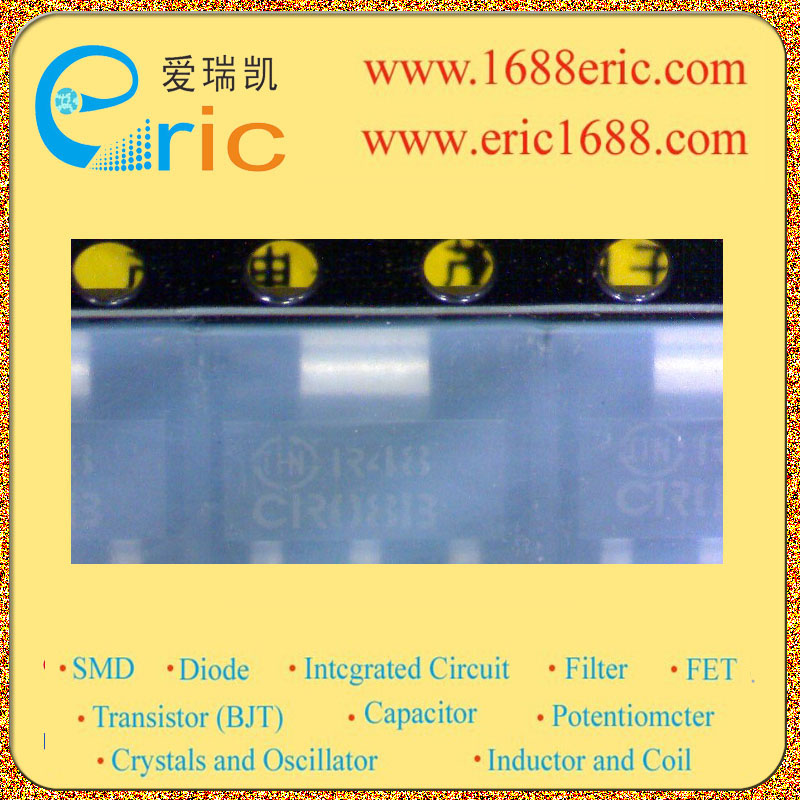

MCR08BT1 的参数 |
| 反向重复峰值电压VRRM/断态重复峰值电压VDRM
Repetitive peak reverse voltage/Repetitive peak off-state voltage |
200V |
| 通态平均电流IT(AV)
Average on-state current |
|
| 通态最大电流IT(RMS)
RMS on-state current |
0.8A |
| 栅极触发电压VGT
Gate trigger voltage |
0.8V |
| 栅极触发电流IGT
Gate trigger current |
200μA |
| 保持电流IH
Holding current |
5mA |
| 峰值通态电压VTM
On-state voltage |
1.7V |
| 重复峰值断态电流IDRM
Repetitive peak off-state current |
10μA |
| 浪涌电流ITSM(50Hz、60Hz)
Current - Non Rep. Surge 50, 60Hz (Itsm) |
8A |
| Description & Applications |
Sensitive Gate Silicon Controlled Rectifiers Sensitive Gate Trigger Current Blocking Voltage to 600 V Glass Passivated Surface for Reliability and Uniformity Surface Mount Package Pb?Free Packages are Available |
| 描述与应用 |
敏感栅 可控硅整流器 敏感的门触发电流 阻断电压为600 V 玻璃表面钝化的可靠性和一致性 表面贴装封装 提供无铅封装 |
