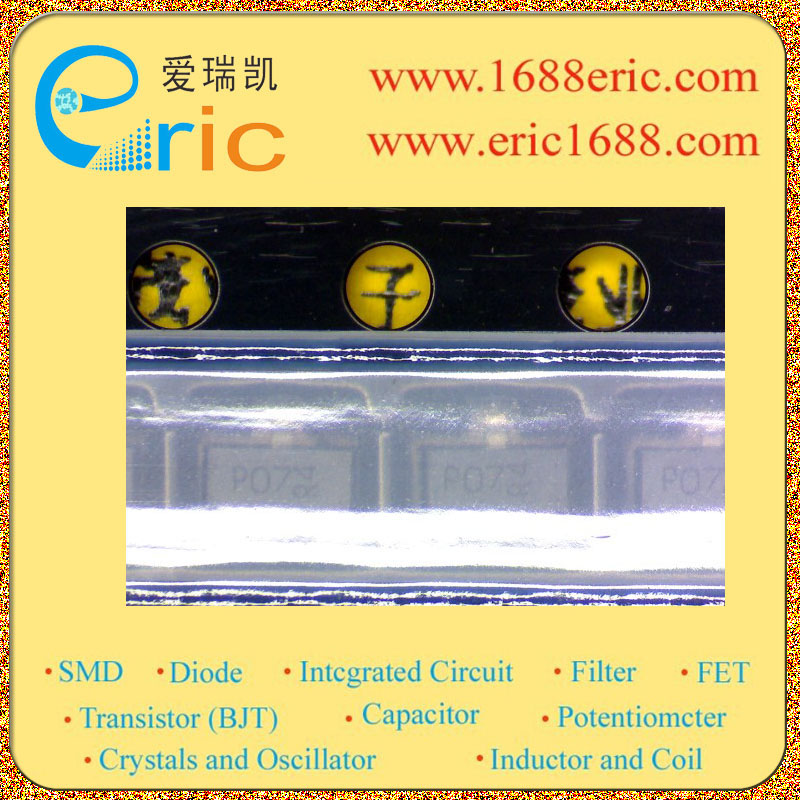

DDTA143TCA-7-F P07 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-50V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
-50V |
| 集电极连续输出电流IC
Collector Current(IC) |
-100mA/-0.1A |
| 基极输入电阻R1
Input Resistance(R1) |
4.7KΩ/Ohm |
| 基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
4.7KΩ/Ohm |
| 电阻比(R1/R2)
Resistance Ratio |
1 |
| 直流电流增益hFE
DC Current Gain(hFE) |
100~600 |
| 截止频率fT
Transtion Frequency(fT) |
250MHz |
| 耗散功率Pc
Power Dissipation |
0.2W/200mW |
| Description & Applications |
Feature ? PNP PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR ? Epitaxial Planar Die Construction ? Complementary NPN Types Available(DDTC) ? Built-In Biasing Resistor, R1 only ? Lead Free/RoHS Compliant (Note 2) |
| 描述与应用 |
特点 ?PNP预偏置小信号SOT-23表面贴装晶体管 ?外延平面模具建设 ?互补NPN类型（DDTC） ?内置偏置电阻R1只 ?无铅/ RoHS规定（注2） |
