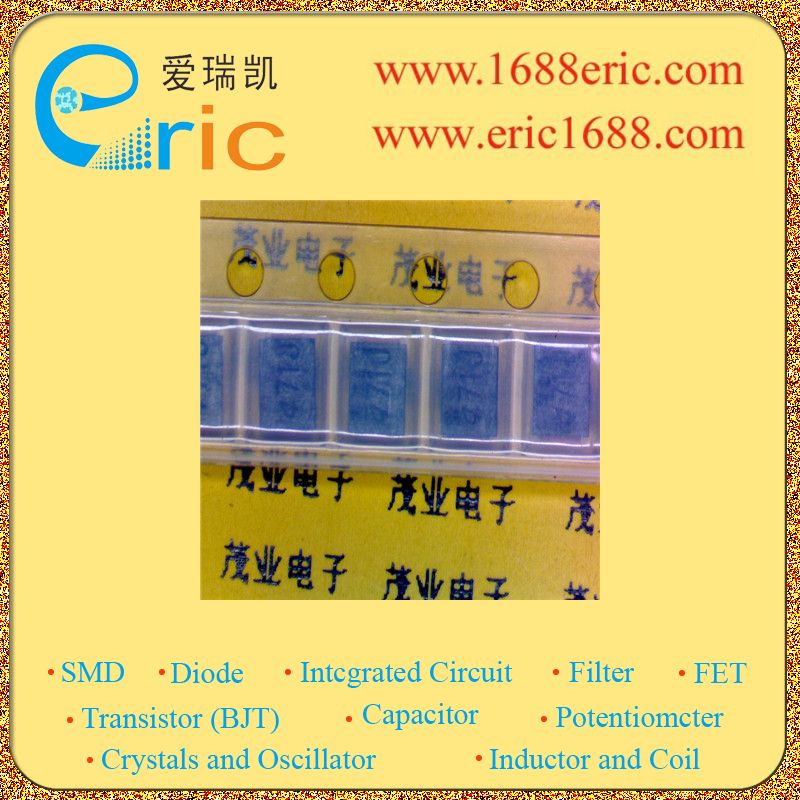

NLV32T-471J-PF 471J 的参数 |
| 电感值
Inductance |
470UH |
| 误差
Tolerance |
±5% |
| 额定电流
Current Rating |
25mA |
| 饱和电流
Current - Saturation |
|
| 不同频率时的Q值
Q @ Frequency |
20 @ 0.796MHz |
| 自振谐频率SRF
Frequency - Self Resonant |
4MHz |
| DC电阻DCR
DC Resistance (DCR) |
40Ω/Ohm |
| 屏蔽
Shielding |
无屏蔽 Unshielded |
| Description & Applications |
NLV Series NLV32 Type FEATURES ? The product has good heat durability that withstands lead-free compatible reflow soldering conditions. ? Lead-free material is used for the plating on the terminal ? The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series. ? The product uses metal terminals, which realize excellent con-nection reliability. ? Highly heat resistant thermoplastic resin is used to form the exterior package. ? From 0.01μH to 100μH, all of the products in the E-12 series are J(±5%) tolerance products. ? This product conforms to the RoHS standard. |
| 描述与应用 |
NLV系列NLV32类型 特点 该产品具有良好的耐热性，可承受无铅兼容回流焊条件。 无铅材料可用于终端上的镀敷 电气特性，可靠性，形状和焊垫的形状与前NL系列是相同的。 该产品采用金属终端，实现优异的连接可靠性。 外部包装是用高耐热性的热塑性树脂。 在E-12系列所有的产品中J（±5％）公差都是从0.01μH至100μH。 本产品符合RoHS标准。 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| NLV32T-470J-PF |
470J |
TDK |
05NOPB |
3225-470 |
0 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| NLV32T-4R7J-PF |
4R7J |
TDK |
05+NOPB |
3225-4R7 |
0 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| NLV32T-471J-PF |
471J |
TDK |
05+ROHS |
3225-471 |
0 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| NLV32T-471J-PF |
471J |
TDK |
05+NOPB |
3225-471 |
0 |
电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound |
查看 |
| NLV32T-4R7J-PF |
|
TDK |
05+NOPB |
3225-4R7J |
0 |
电感Inductor/Coil/Choke-其它Other |
查看 |
| NLV32T-470J-PF |
|
TDK |
05+NOPB |
3225-470J |
0 |
电感Inductor/Coil/Choke-其它Other |
查看 |
|
|
|
