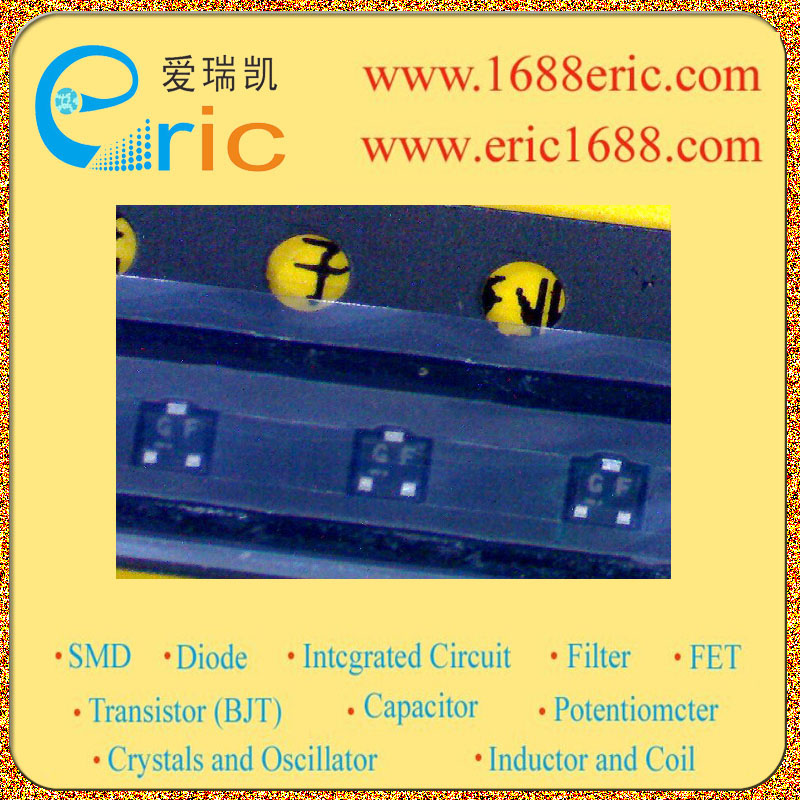

2SK4028C-T1 GF 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
20v |
| 栅源极击穿电压V(BR)GS
Gate-Source Voltage |
-20v |
| 漏极电流(Vgs=0V)IDSS
Drain Current |
0.15~0.24ma |
| 关断电压Vgs(off)
Gate-Source Cut-off Voltage |
-0.37~-1v |
| 耗散功率Pd
Power Dissipation |
100mW/0.1W |
| Description & Applications |
?N-CHANNEL SILICON JUNCTION FIELD EFFECT TRANSISTOR ?High gain ?1.0 dB (VDD = 2.0 V, C = 5 pF, RL = 2.2 k?) ? Low noise ?115 dB (VDD = 2.0 V, C = 5 pF, RL = 2.2 k?) ? Ultra thin thickness package t = 0.3 mm TYP. |
| 描述与应用 |
?N沟道硅结型场效应晶体管 ?高增益 -1.0分贝（VDD= 2.0 V，C= 5 pF的，RL=2.2kΩ的） ?低噪音 -115分贝（VDD= 2.0 V，C= 5 pF的，RL=2.2kΩ上） ?超薄厚度包 ?T =0.3毫米TYP。 |
