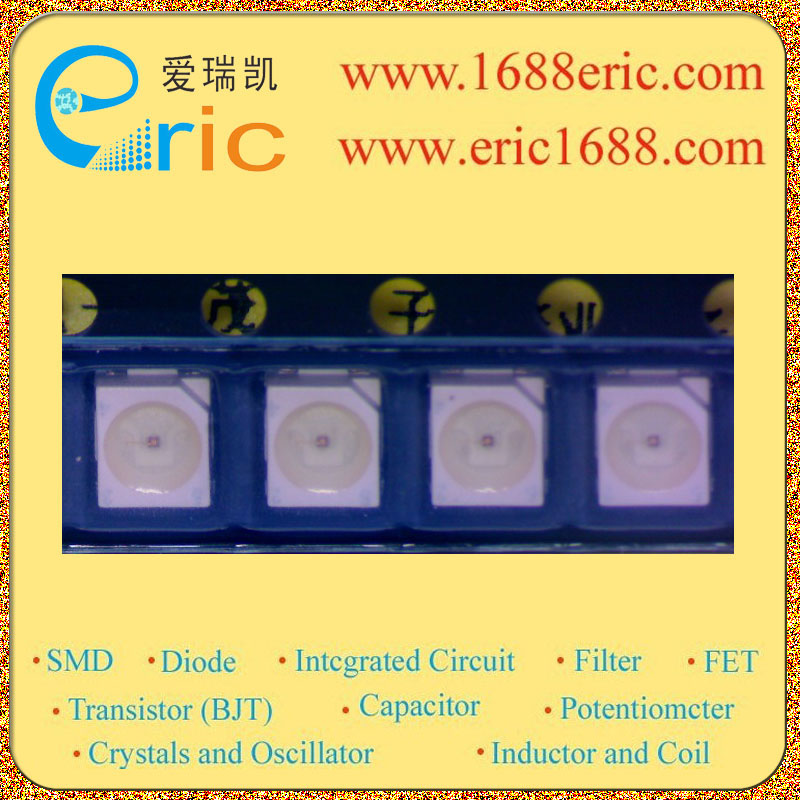

TLOH1100B 的参数 |
| 颜色
Color |
橙色 ORANGE |
| 流明Lv(mcd)
Luminous intensity |
270mcd |
| 正向电压(VF)
Forward Voltage(Vf) |
2v |
| 正向电流(IF)
ForwArd Current(If) |
20mA |
| 主波长λd(nm)
Dominant Wavelength |
605nm |
| 峰值波长λp(nm)
Peak Wavelength |
605nm |
| 最大耗散功率Pd
Power dissipation |
? Surface-mount devices
? 3.2 (L) × 2.8 (W) × 1.9 (H) mm
? Flat-top type
? InGaA?P LEDs
? High luminous intensity
? Low drive current, high-intensity light emission
? Colors: red, orange, yellow
? Pb-free reflow soldering is possible
? Applications: automotive use, message signboards, backlighting etc.
? Standard embossed tape packing: T11 (2000/reel)
8-mm tape reel |
| Description & Applications |
? Surface-mount devices ? 3.2 (L) × 2.8 (W) × 1.9 (H) mm ? Flat-top type ? InGaA?P LEDs ? High luminous intensity ? Low drive current, high-intensity light emission ? Colors: red, orange, yellow ? Pb-free reflow soldering is possible ? Applications: automotive use, message signboards, backlighting etc. ? Standard embossed tape packing: T11 (2000/reel) 8-mm tape reel |
| 描述与应用 |
?表面贴装设备 ?3.2（L）×2.8（W）×1.9（高）mm ?平顶型 ?InGaA?P发光二极管 ?高发光强度 ?低驱动电流，高亮度发光 颜色：红，橙，黄 ?无铅回流焊接是可能的 ?应用范围：汽车用，消息招牌，背光等。 ?标准压纹带包装：T11（2000/reel） 8毫米磁带卷轴 |
