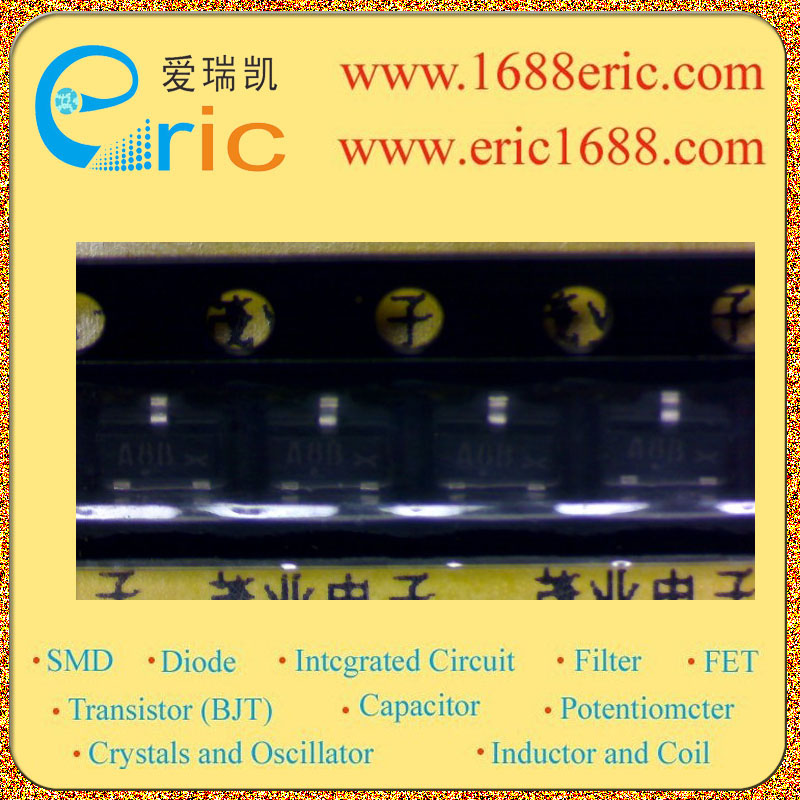

MMUN2212LT1G
 型号:  MMUN2212LT1G
 标记/丝印/代码/打字:  A8B
 厂家:  ON
 封装:  SOT-23/SC-59
 批号:  06NOPB
 库存数量:  300
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  带阻尼NPNNPN Bipolar Digital Transistor (BRT)
 技术文档PDF:  在线阅读

 在线购买

MMUN2212LT1G A8B 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) 50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) 50V
集电极连续输出电流IC Collector Current(IC) 100mA/0.1A
基极输入电阻R1 Input Resistance(R1) 22KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2) 22KΩ/Ohm
电阻比(R1/R2) Resistance Ratio 1
直流电流增益hFE DC Current Gain(hFE) 60-100
截止频率fT Transtion Frequency(fT)
耗散功率Pc Power Dissipation 0.25W /250mW
Description & Applications Features ? Simplifies Circuit Design ? Reduces Board Space and Component Count ? These Devices are Pb?Free, Halogen Free/BFR Free and are RoHS Compliant
描述与应用 特性 ?简化电路设计 ?缩小板级空间和元件数量 ?这些器件是无铅,无卤/不含BFR,并符合RoHS标准
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
MMUN2214LT1 A8D ON 00+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-带阻尼NPNNPN Bipolar Digital Transistor (BRT) 查看
MMUN2215LT1 A8E ON 04+ SOT-23/SC-59 3000 三极管Bipolar Junction Transistors(BJT)-带阻尼NPNNPN Bipolar Digital Transistor (BRT) 查看
MMUN2216LT1 A8F ON 05+ SOT-23/SC-59 9400 三极管Bipolar Junction Transistors(BJT)-带阻尼NPNNPN Bipolar Digital Transistor (BRT) 查看
MMUN2213LT1 8C ON 0441+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-带阻尼NPNNPN Bipolar Digital Transistor (BRT) 查看
MMUN2211RLT1 A8A LRC 05+ SOT-23/SC-59 4550 三极管Bipolar Junction Transistors(BJT)-带阻尼NPNNPN Bipolar Digital Transistor (BRT) 查看
MMUN2212LT1G A8B ON 06NOPB SOT-23/SC-59 300 三极管Bipolar Junction Transistors(BJT)-带阻尼NPNNPN Bipolar Digital Transistor (BRT) 查看
MMUN2213LT1 A8C ON 05+ SOT-23/SC-59 90 三极管Bipolar Junction Transistors(BJT)-带阻尼NPNNPN Bipolar Digital Transistor (BRT) 查看
MMUN2216LT1 A8F ON 00+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-带阻尼NPNNPN Bipolar Digital Transistor (BRT) 查看
MMUN2211RLT1 A8A LRC 05+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT) 查看
MMUN2215LT1 8E ON 05+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT) 查看
