R1111N251B
 型号:  R1111N251B

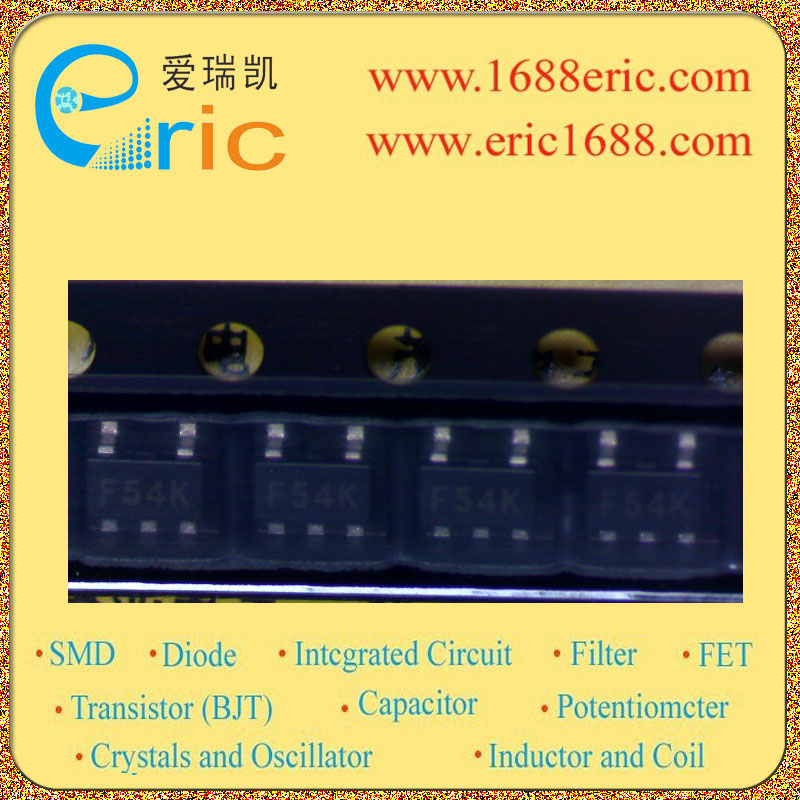

 标记/丝印/代码/打字:  F54
 厂家:  RICOH
 封装:  SOT-153/SOT23-5
 批号:  05+
 库存数量:  2000
 所属分类:  电源管理ICPower Management IC/PMIC
  电压调整器/稳压Voltage Regulator
    低压差LDOLow Dropout (LDO)
 技术文档PDF:  在线阅读

 在线购买

R1111N251B F54 的参数

电路数量 Number of Regulators 1
输入电压VIN Voltage - Input 9V
输出电压VOUT Voltage - Output 2.5V
输出电流Io Current - Output 100mA/0.1A
最大压降VDO Voltage - Dropout 240mV/0.24V
带使能脚EN/CE(ON/OFF功能) With Enable Pin 无 No
最大耗散功率Pd Power dissipation 250mW/0.25W
Description & Applications LOW NOISE 150mA LDO REGULATOR;? Ultra-Low Supply Current.TYP. 35μA ?Standby ModeTYP. 0.1μA ? Low Dropout Voltage TYP. 0.2V(IOUT=100mA) ?High Ripple RejectionYP. 70dB(f=1kHz) ?Low Temperature-Drift Coefficient of ?Output VoltageTYP. ±100ppm/°C ?Excellent Line Regulation TYP. 0.05%/V ?High Output Voltage Accuracy±2.0% ?Excellent Line Transient Response and Load Transient Response ?Output VoltageStepwise setting with a step of 0.1V in the range of 1.5V to 5.0V is possible ?Power source for cellular phones such as GSM,CDMA and various kind of PCSs. ?Power source for electrical appliances such as cameras, VCRs and camcorders. ?Power source for battery-powered equipment
描述与应用 低噪声150MA LDO稳压器;?超低电源Current.TYP的。 35μA ?待机ModeTYP。 0.1μA ?低压差电压TYP。 0.2V(IOUT100毫安) ?纹波RejectionYP高。 70分贝(F=1kHz时) ?低温度漂移系数 ?输出VoltageTYP。温度系数±100ppm/°C ?卓越的线路调整TYP。 0.05%/ V ?高输出电压精度±2.0%? ?出色的线路瞬态响应和负载瞬态响应 ?输出VoltageStepwise的设置在1.5V的范围内,以每步0.1V到5.0V的 可能 ?电源蜂窝电话如GSM,CDMA和各类的PCS。 ?电器如摄像机,录像机和摄像机的电源。 ?用于电池供电设备的电源
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
R1111N251A A5 RICOH 05+ SOT-153/SOT23-5 2000 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
R1111N281B F8 RICOH 05+ SOT-153/SOT23-5 0 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
R1111N281B F8 RICOH 03+ SOT-153/SOT23-5 800 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
R1111N281BE F8 RICOH 05+ SOT-153/SOT23-5 20 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
R1111N251B F54 RICOH 05+ SOT-153/SOT23-5 2000 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
