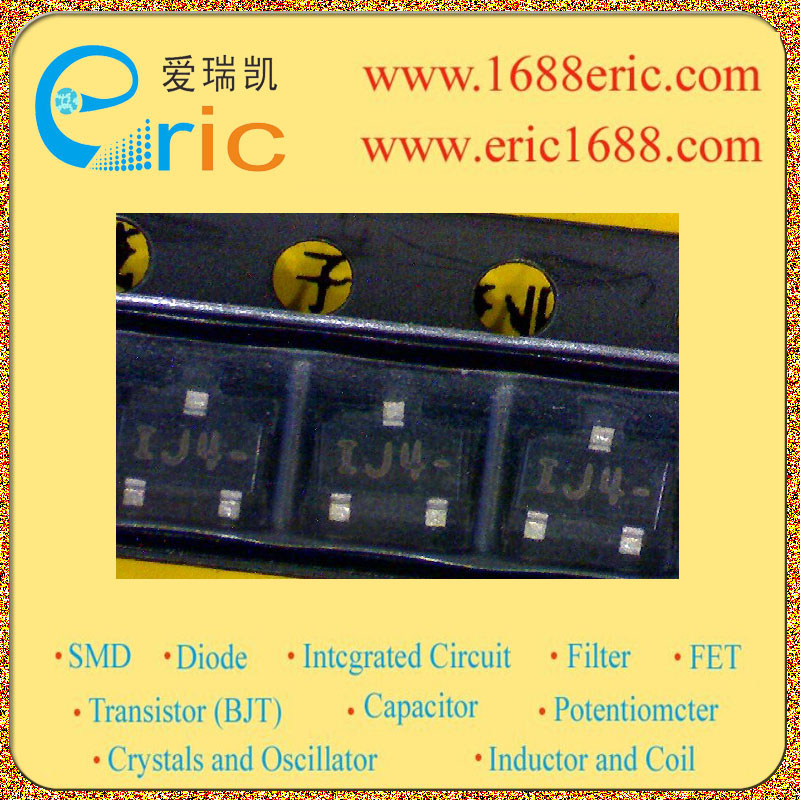

2SK1740-4 1J4 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
40v |
| 栅源极击穿电压V(BR)GS
Gate-Source Voltage |
-40v |
| 漏极电流(Vgs=0V)IDSS
Drain Current |
48~63ma |
| 关断电压Vgs(off)
Gate-Source Cut-off Voltage |
-2~-5v |
| 耗散功率Pd
Power Dissipation |
250mW/0.25W |
| Description & Applications |
?N-CHANNEL SILICON JUNCTION FIELD EFFECT TRANSISTOR ?HF Amplifiers Low-Frequency Amplifiers Analog Switches Small-sized package permitting 2SK1740-applied sets to be made small and slim. |
| 描述与应用 |
?N沟道硅结型场效应晶体管 ?高频放大器的低频放大器模拟开关 小型包装允许2SK1740应用设置小型和超薄。 |
