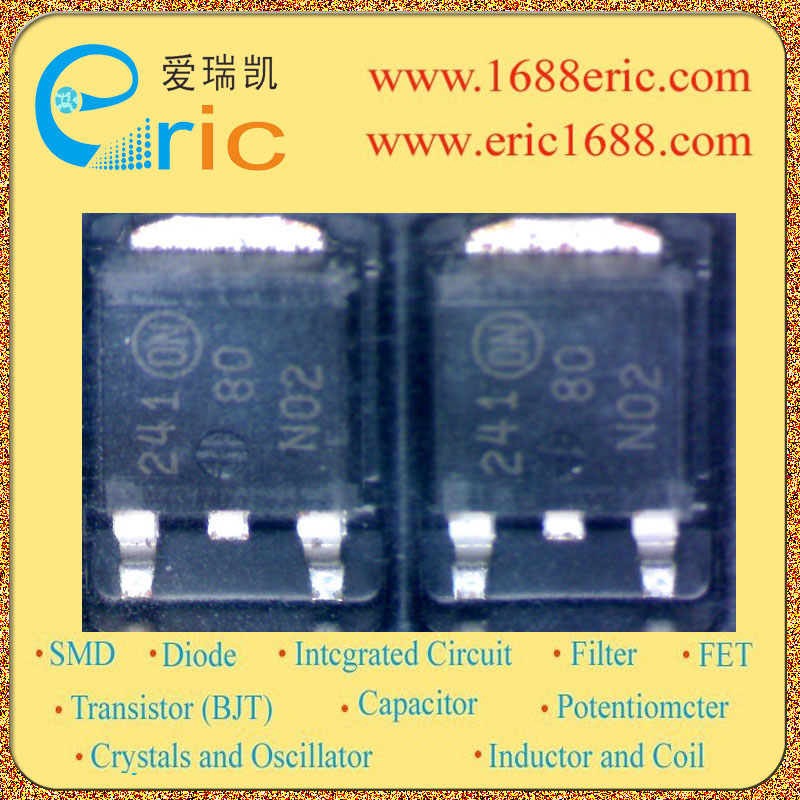

NTD80N02T4 80N02 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
24V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
20V |
| 最大漏极电流Id
Drain Current |
80A |
| 源漏极导通电阻ΩRds
DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance |
0.058Ω/Ohm @80A,10V |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
1.2V |
| 耗散功率Pd
Power Dissipation |
76W |
| Description & Applications |
Power MOSFET 3.0 Amps, 60 Volts N?Channel SOT?223 Designed for low voltage, high speed switching applications in power supplies, converters and power motor controls and bridge circuits. Power MOSFET 24 V, 80 A, N?Channel DPAK Designed for low voltage, high speed switching applications in power supplies, converters and power motor controls and bridge circuits. ? Power Supplies ? Converters ? Power Motor Controls ? Bridge Circuits |
| 描述与应用 |
功率MOSFET 3.0安培，60伏 N沟道SOT-223 专为低电压，高速开关应用 电源，转换器和功率电机控制桥电路。 功率MOSFET 24 V，80 A，N沟道DPAK 专为低电压，高速开关应用 电源，转换器和功率电机控制桥电路。 ?电源供应器 ?转换器 ?功率电机控制 ?桥电路 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
