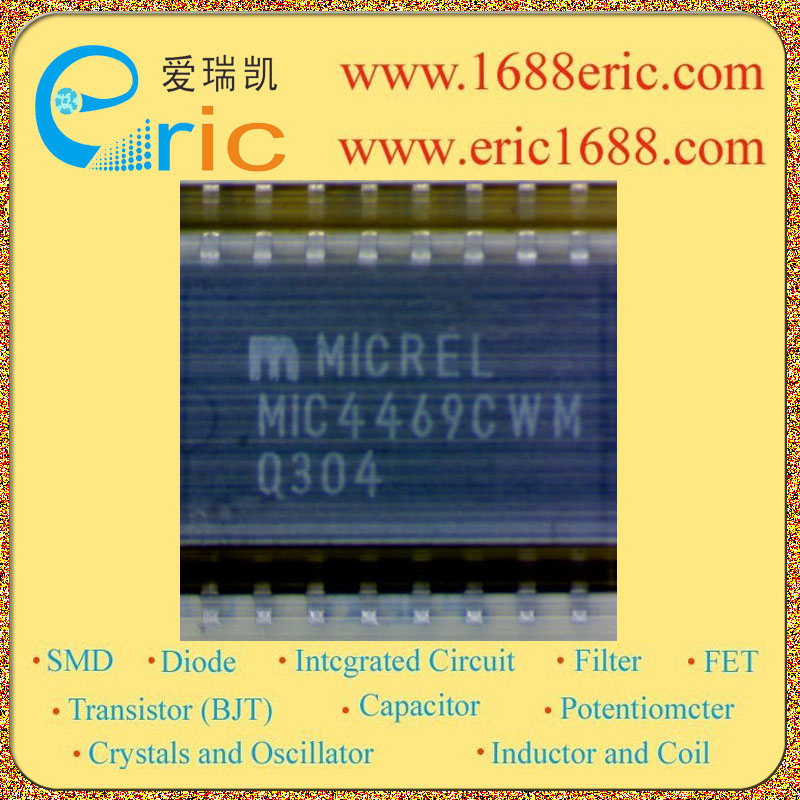

MIC4469CWM MIC4469CWM 的参数 |
| 驱动器类型（配置/类型）
Type/Configuration |
低端 Low-Side |
| 驱动器数量（配置数）
Number of Configurations |
4 |
| 输入类型
Input Type |
反相和非反相 Inverting and Non-Inverting |
| 导通电阻
On-State Resistance |
|
| 峰值输出电流
Current - Peak |
1.2A |
| 输出端数量
Number of Outputs |
4 |
| 电源电压
Voltage - Supply |
4.5V ~ 18V |
| Description & Applications |
FEATURES ? Quad 1.2A-Peak Low-Side MOSFET Driver Bipolar/CMOS/DMOS ? Built using reliable, low power CMOS processes ? Latchproof. Withstands 500mA Inductive Kickback ? 3 Input Logic Choices ? Symmetrical Rise and Fall Times ............................25ns ? Short, Equal Delay Times .......................................75ns ? High Peak Output Current ....................................... 1.2A ? Wide Operating Range .................................. 4.5 to 18V ? Low Equivalent Input Capacitance (typ) .................. 6pF ? Inputs = Logic 1 for Any Input From 2.4V to VS ? ESD Protected Applications ? General-Purpose CMOS Logic Buffer ? Driving All 4 MOSFETs in an H-Bridge ? Direct Small-Motor Driver ? Relay or Peripheral Drivers ? Dual Differential Output Power Drivers ? CCD Driver ? Pin-Switching Network Driver |
| 描述与应用 |
特点 ?四1.2A峰值低侧MOSFET驱动器双极/ CMOS/ DMOS ?内置使用可靠，低功耗的CMOS工艺 ?Latchproof。可承受500mA的电感的回扣 ?3输入逻辑的选择 ?对称的上升和下降时间............................为25ns ?短，平等延迟时间.......................................75ns的 ?高峰值输出电流....................................... 1.2A ?宽工作电压范围.................................. 4.5至18V ?低等效输入电容（典型值）.................. 6PF ?输入任何从2.4V输入到VS=逻辑1 ?ESD保护 应用 ?通用CMOS逻辑缓冲器 ?所有驱动的MOSFET H桥 ?小电机驱动器 ?继电器或外设驱动器 ?双差分输出功率驱动器 ?CCD驱动器 ?引脚交换网络驱动器 |
